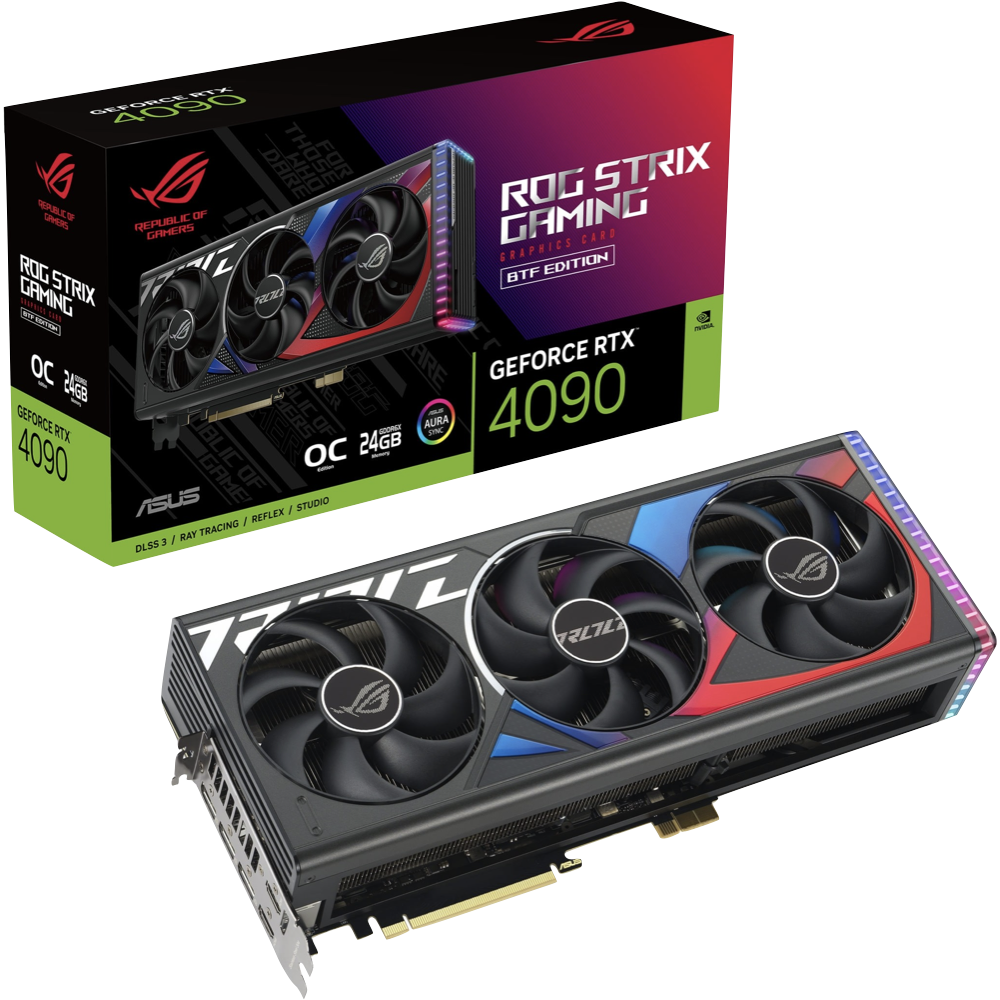

Asus ROG Strix GeForce RTX4090 BTF OC Edition 24GB GDDR6x – New (Open Box)

Brand New Graphics Card – Box Opened – Has never been fitted.

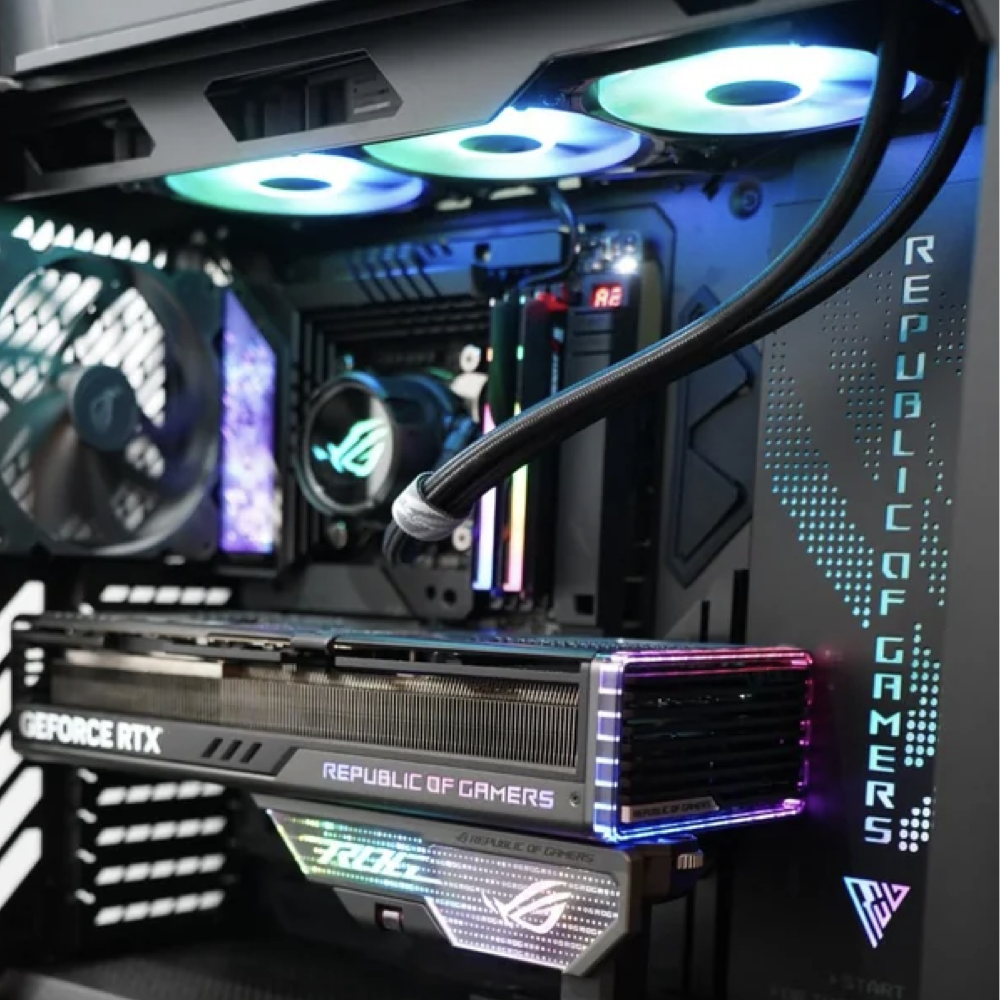

**NB – This card does not fit in a standard PCie slot – The card is cableless so the motherboard must specifically have a BTF power port**

Supported motherboards:

ROG MAXIMUS Z790 HERO BTF

TUF GAMING Z790-BTF WIFI

TUF GAMING B760M-BTF WIFI

ROG Strix GeForce RTX™ 4090 BTF OC Edition 24GB GDDR6X

ROG Strix GeForce RTX™ 4090 BTF OC Edition 24GB GDDR6X buffed-up design with chart-topping thermal performance and innovative Graphics Card High-Power (GC-HPWR) Gold Finger.

• Powered by NVIDIA DLSS3, ultra-efficient Ada Lovelace arch, and full ray tracing

• 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering

• 3rd Generation RT Cores: Up to 2x ray tracing performance

• OC edition: boost clock 2640 MHz (OC mode)/ 2610 MHz (default mode)

• Graphics card high-power gold finger for power transmission, and prevent GPU sag

• Eliminate the need for traditional 16-pin external power connections to the graphics card

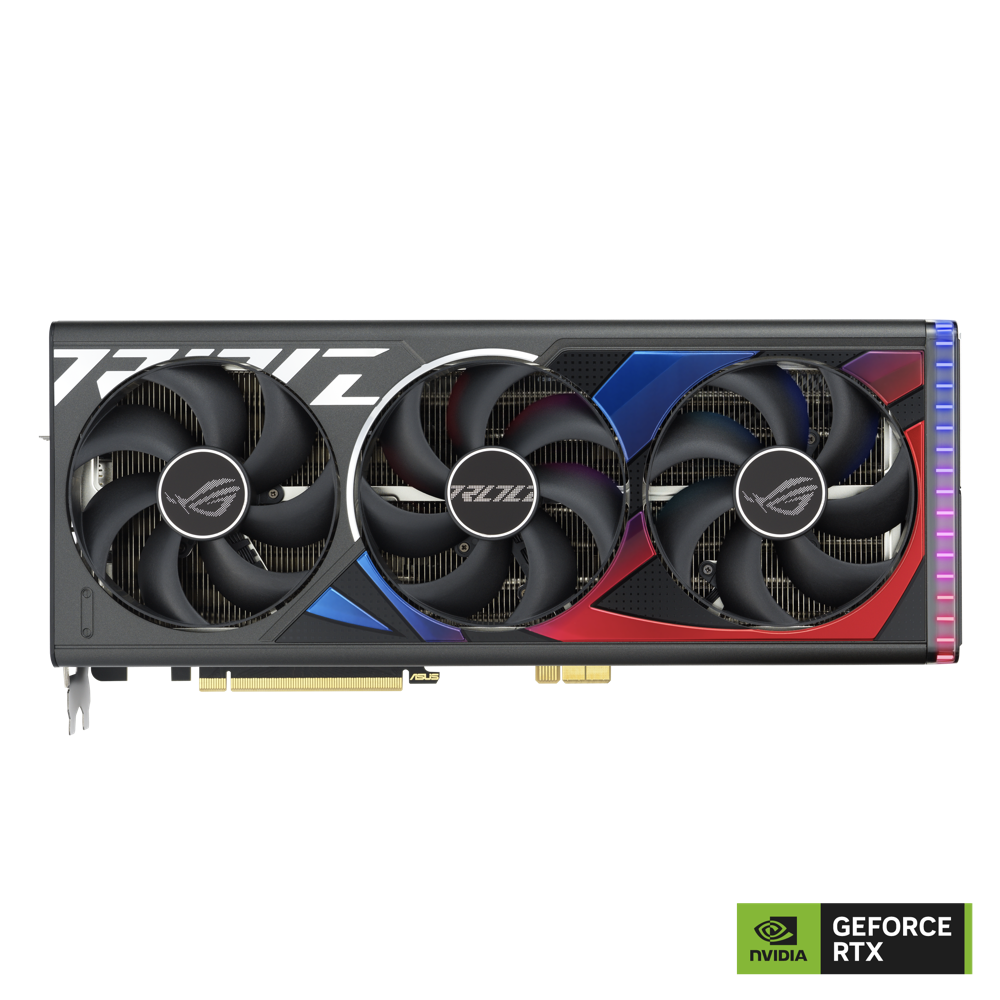

• Axial-tech fans scaled up for 23% more airflow

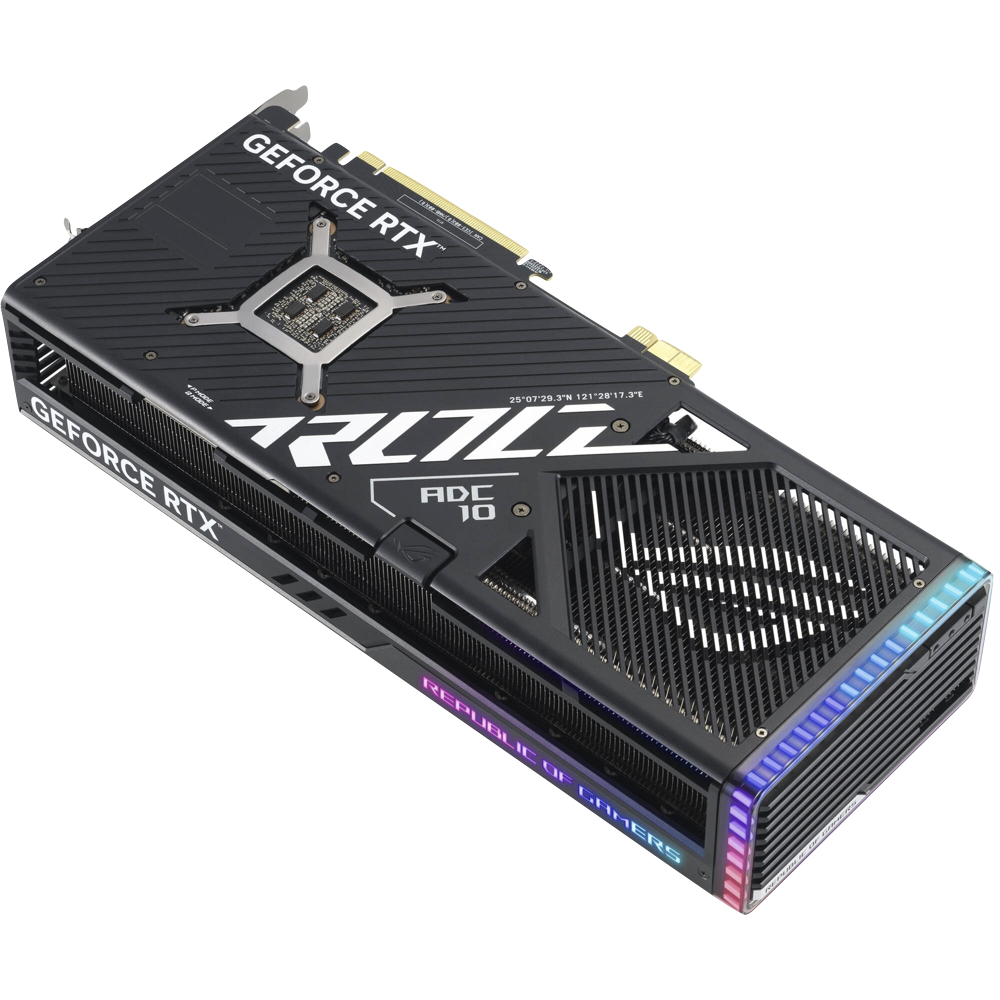

• New patented vapor chamber with milled heatspreader for lower GPU temps

• 3.5-slot design: massive fin array optimized for airflow from the three Axial-tech fans

• Diecast shroud, frame, and backplate add rigidity and are vented to further maximize airflow and heat dissipation

• Digital power control with high-current power stages and 15K capacitors to fuel maximum performance

• Auto-Extreme precision automated manufacturing for higher reliability

• GPU Tweak III software provides intuitive performance tweaking, thermal controls, and system monitoring

MODEL

ROG Strix GeForce RTX™ 4090 BTF OC Edition 24GB GDDR6X

5.0

(2)

5.0 out of 5 stars. 2 reviews

GRAPHIC ENGINE

NVIDIA^® GeForce RTX™ 4090

AI PERFORMANCE

1368

BUS STANDARD

PCI Express 4.0

OPENGL

OpenGL^®4.6

VIDEO MEMORY

24GB GDDR6X

ENGINE CLOCK

OC mode: 2640 MHz
Default mode: 2610 MHz (Boost clock)

CUDA CORE

16384

MEMORY SPEED

21 Gbps

MEMORY INTERFACE

384-bit

RESOLUTION

Digital Max Resolution 7680 x 4320

INTERFACE

Yes x 2 (Native HDMI 2.1a)

Yes x 3 (Native DisplayPort 1.4a)

HDCP Support Yes (2.3)

MAXIMUM DISPLAY SUPPORT

4

NVLINK/ CROSSFIRE SUPPORT

No

ACCESSORIES

1 x Collection Card​
1 x Speedsetup Manual​
1 x ROG Graphics Card Holder
1 x ROG Velcro Hook & Loop
1 x Thank you Card

SOFTWARE

ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.

DIMENSIONS

357.6 x 149.3 x 70.1mm

RECOMMENDED PSU

1000W

POWER CONNECTORS

PCIe high-power connector

SLOT

3.5 Slot

AURA SYNC

ARGB

HIDDEN-CONNECTOR (BTF)

With Graphics card high-power gold finger

NOTE

* BTF edition graphics cards are designed for use only with advanced BTF motherboards (which have Graphics Card High-Power Slot).
* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.
