ASRock B850M-X WiFi | AMD AM5 Micro ATX | DDR5 8200+ MHz | PCIe 5.0 | Wi-Fi 6E – New

R2,507.79

Compact Doesn’t Mean Compromise

The ASRock B850M-X WiFi packs full next-gen platform power into a Micro ATX footprint — giving builders the freedom to go small without giving up speed, expandability, or future-proofing. Whether you’re squeezing a powerhouse into a compact case or building a clean, cable-managed workstation, this board has the bones to back it up.

DDR5 at Blistering Speeds — Ready for What’s Next

With support for up to 128GB of DDR5 memory running at 8200+ MHz via Intel XMP and AMD EXPO profiles, memory tuning is effortless. Whether you’re compiling code, editing timelines, or pushing frame rates in esports titles, your system responds with the kind of low-latency snappiness that makes everything feel instant.

Storage So Fast, Loading Screens Become a Memory

A Gen5x4 Blazing M.2 slot screaming at 128 Gb/s and a Gen4x4 Hyper M.2 slot at 64 Gb/s mean your games, projects, and workflows load before you’ve had time to blink. Add four SATA3 ports with RAID support and you’ve got a storage setup that’s both lightning-fast and resilient.

Always Connected, Always in Control

Wi-Fi 6E and 2.5G LAN deliver the kind of network performance that keeps you ahead of the lobby — or the deadline. Pair that with Polychrome RGB and SignalRGB support for game-reactive lighting, and Nahimic-enhanced 7.1 audio, and the B850M-X turns your build into a fully immersive experience from the inside out.

80 in stock

Description
Tech Specs
Performance
Socket
AMD AM5
Chipset
AMD B850
Compatible CPUs
AMD Ryzen™ 9000, 8000, and 7000 Series
Power Phases
6+1+1 Dr.MOS Power Phase Design
Memory Slots
2 x DDR5 DIMM, up to 128GB
Memory Speed
Up to 8200+ MHz (OC), Intel XMP & AMD EXPO supported
Storage & Expansion
M.2 Slot 1
1 x Blazing M.2 (PCIe Gen5x4, up to 128 Gb/s)
M.2 Slot 2
1 x Hyper M.2 (PCIe Gen4x4, up to 64 Gb/s)
SATA Ports
4 x SATA3 (6 Gb/s), RAID 0/1/10 supported
PCIe Slots
1 x PCIe 4.0 x16, 1 x PCIe 4.0 x16 (x4 mode), 1 x PCIe 4.0 x1
M.2 Key-E
1 x Key-E slot for Wi-Fi module
Display
HDMI
1 x HDMI 2.1 (supports up to 4K@120Hz)
DisplayPort
1 x DisplayPort 1.4 (supports up to 4K@120Hz)
Integrated Graphics
Supported via CPU (AMD RDNA™, varies by CPU)
Connectivity
LAN
Realtek Dragon RTL8125BG 2.5G LAN with Smart Bandwidth Control
Wi-Fi
Wi-Fi 6E (802.11ax, 2.4/5/6 GHz)
Bluetooth
Bluetooth 5.2
Rear USB
1 x USB 3.2 Gen1 Type-C, 3 x USB 3.2 Gen1 Type-A, 2 x USB 2.0
Front Panel USB Headers
1 x USB 3.2 Gen1 Type-C Header, 2 x USB 3.2 Gen1 Type-A, 4 x USB 2.0
Audio
Realtek ALC897 7.1 CH HD Audio, Nahimic Audio, Sound Tracker, Noise Suppression — 3 x Rear Audio Jacks
Design
Form Factor
Micro ATX (24.4 cm x 22.6 cm)
RGB Headers
1 x 12V RGB Header, 3 x 5V Addressable RGB Headers
Lighting Sync
Polychrome RGB Sync + SignalRGB Support
Fan Headers
2 x CPU Fan, 3 x Chassis/Water Pump Fan, 1 x AIO Pump
Fan Tuning
Fan-Tastic Tuning UI with PWM/DC detection and smart curve control
BIOS Features
BIOS Flashback Button on Rear I/O
Wi-Fi Antenna
2 x Wi-Fi Antenna Ports (antennas included)
In the Box
Included Items

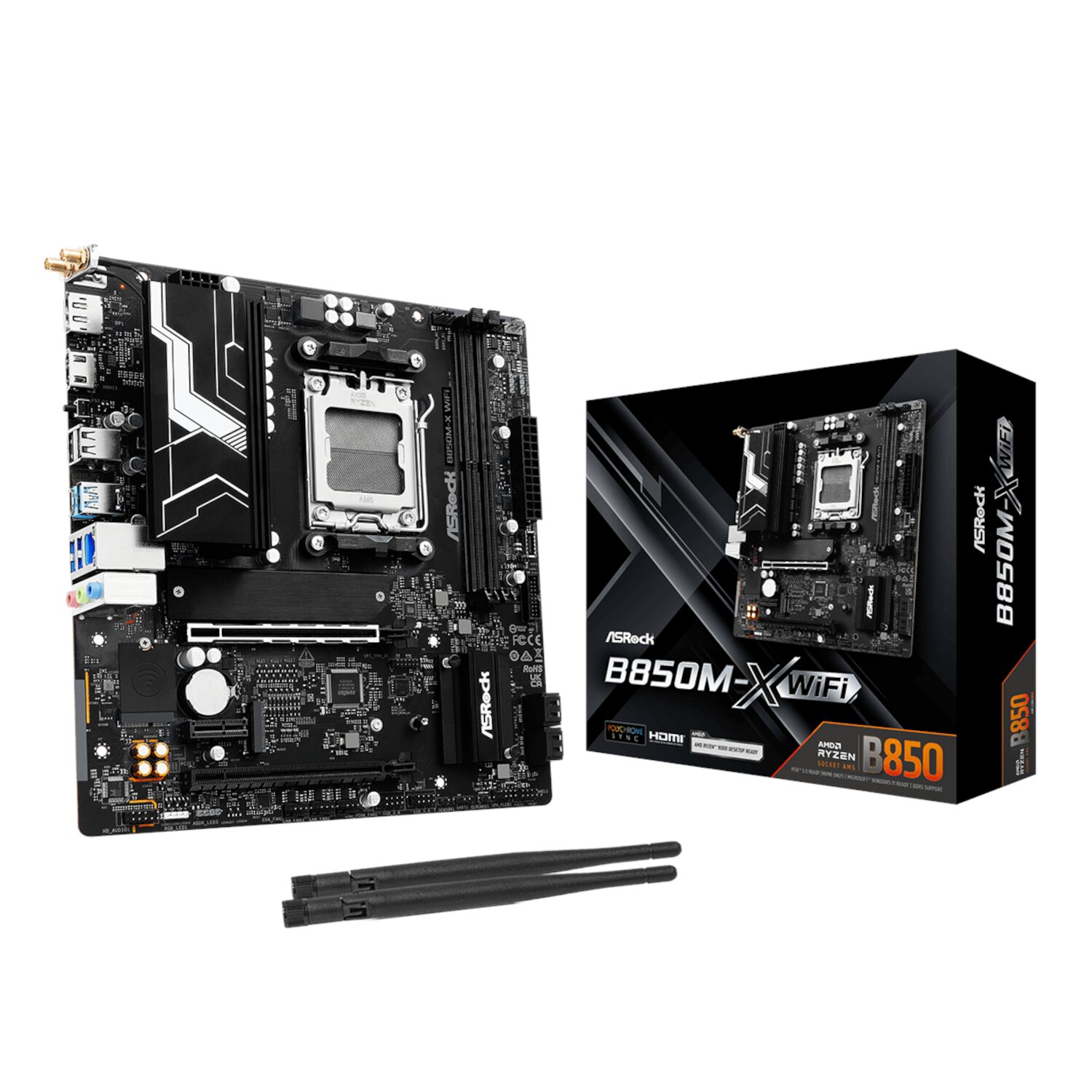

ASRock B850M-X WiFi Motherboard x1, I/O Shield x1, SATA Data Cables x2, Wi-Fi Antennas x2
Additional information
Weight 1.22 kg
Dimensions 29.6 × 26.4 × 5.8 cm
Brand

ASRock

Colour

Black

Warranty

36 Months
