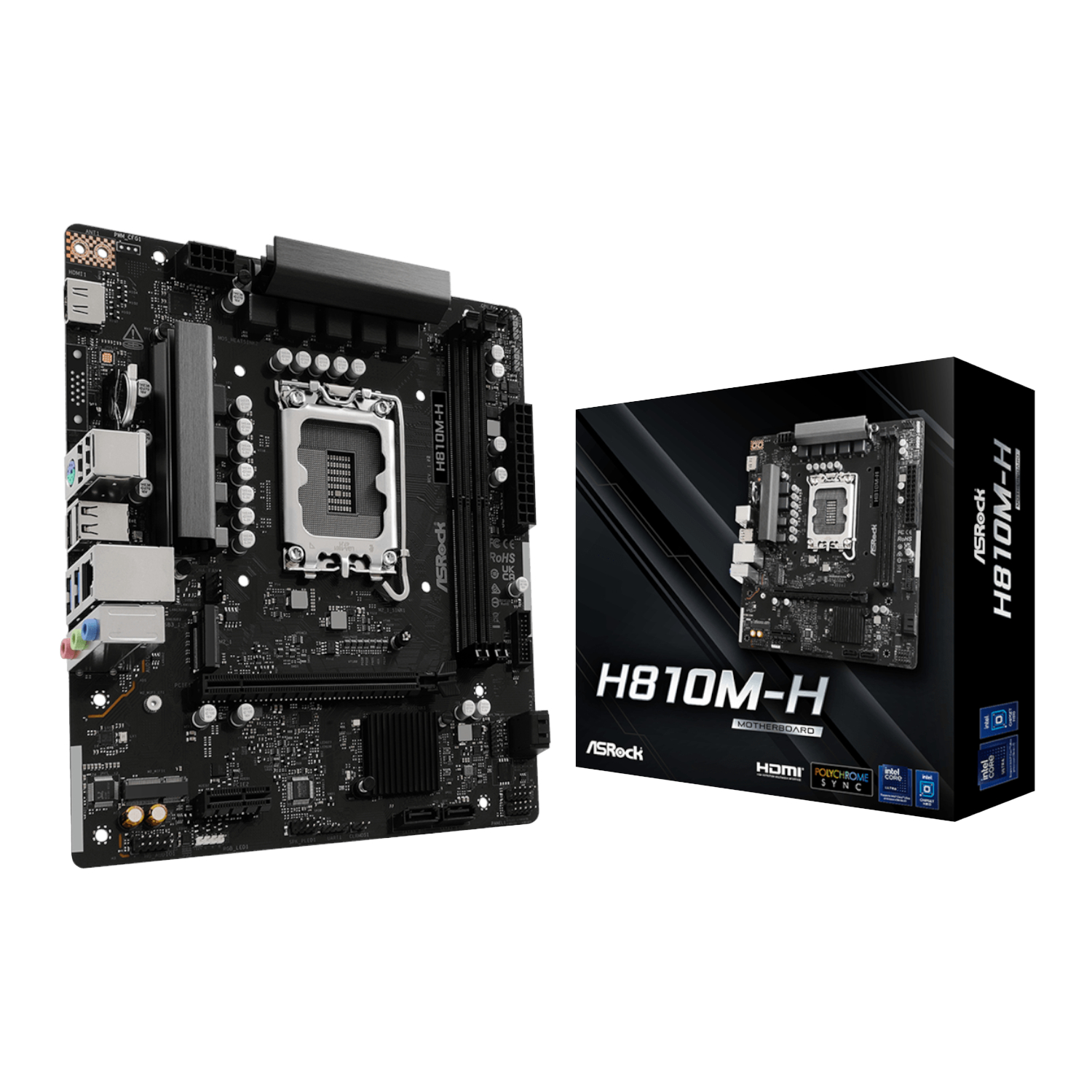

ASRock H810M-H | Intel LGA1851 | Micro ATX | 128GB DDR5 | PCIe Gen4 – New

R1,616.05

Your Next Build Starts Here

The ASRock H810M-H gives your Intel Core Ultra Series 2 build a solid, feature-rich foundation without taking up unnecessary space. Its Micro ATX form factor fits neatly into compact cases while still delivering the connectivity and expansion options you need to get serious work done.

Memory That Keeps Up With You

With support for up to 128GB of DDR5 RAM and speeds reaching 6400MT/s, this board handles everything from heavy multitasking and video editing to gaming and AI-accelerated workloads — all without breaking a sweat.

Plug In, Light Up, Take Control

HDMI 2.1 output delivers crisp 4K visuals at 120Hz, while onboard RGB and addressable LED headers let you personalise your build. ASRock Polychrome SYNC keeps your lighting in harmony across compatible components, making your setup as eye-catching as it is powerful.

25 in stock

Compare
Description
Tech Specs
Performance
CPU Socket
Intel® LGA1851
Supported Processors
Intel® Core™ Ultra Processors (Series 2) with Intel® Hybrid Technology, Turbo Boost Max 3.0, Thermal Velocity Boost, and Adaptive Boost Technology
Chipset
Intel® H810
Memory Slots
2 x DDR5 DIMM (Dual Channel)
Memory Speed
DDR5 non-ECC, un-buffered, up to 6400MT/s; supports CUDIMM and XMP 3.0
Max Memory
128GB
Onboard AI
Integrated NPU for dedicated AI acceleration
BIOS
256Mb AMI UEFI with GUI, EZ Mode, Full HD UEFI, My Favorites, Auto Driver Installer, Instant Flash
Operating System
Microsoft Windows® 11 64-bit
Display
Graphics Architecture
Intel® Xe LPG Graphics Architecture (GPU integrated processors required)
Video Output
1 x HDMI 2.1 TMDS/FRL 8G Compatible — supports HDR, HDCP 2.3, max resolution 4K @ 120Hz
Connectivity
LAN
Realtek RTL8111H Gigabit LAN — 10/100/1000 Mb/s
Audio
Realtek ALC897 7.1 CH HD Audio Codec; HD Audio Jacks: Line In / Front Speaker / Microphone
USB (Rear)
2 x USB 3.2 Gen1 Type-A, 4 x USB 2.0
USB (Front Headers)
1 x USB 3.2 Gen1 Header (2 ports), 1 x USB 2.0 Header (2 ports)
Expansion Slots
1 x PCIe 4.0 x16 (CPU), 1 x PCIe 4.0 x1 (Chipset), 1 x M.2 Key E (type 2230, Wi-Fi/BT PCIe module)
Storage
1 x Hyper M.2 (Key M, type 2280, PCIe Gen4x4 — 64 Gb/s, NVMe boot support), 4 x SATA3 6.0 Gb/s
Rear Panel I/O
2 x Antenna Mounting Points, 1 x PS/2 Mouse/Keyboard, 1 x HDMI, 2 x USB 3.2 Gen1, 4 x USB 2.0, 1 x RJ-45 LAN, HD Audio Jacks
Design
Form Factor
Micro ATX — 22.0 cm x 19.3 cm (8.66-in x 7.6-in)
Colour
Black
RGB Headers
1 x RGB LED Header (12V/3A, 36W), 2 x Addressable LED Headers (5V/3A, 15W); ASRock Polychrome SYNC supported
Fan Headers
1 x CPU Fan (4-pin, Smart Fan, up to 1A/12W), 1 x Chassis Fan (4-pin, Smart Fan, up to 3A/36W, auto 3/4-pin detection)
Power Connectors
1 x 24-pin ATX, 1 x 8-pin 12V
Other Connectors
1 x SPI TPM Header, 1 x Power LED and Speaker Header, 1 x Front Panel Audio Connector
Power Phases
6+1+1+1+1
Software
ASRock Motherboard Utility (A-Tuning), ASRock Polychrome SYNC
Certifications
FCC, CE, ErP/EuP ready
Additional information
Weight 0.84 kg
Dimensions 27.5 × 24 × 5.8 cm
Brand

ASRock

Colour

Black

Warranty

36 Months
