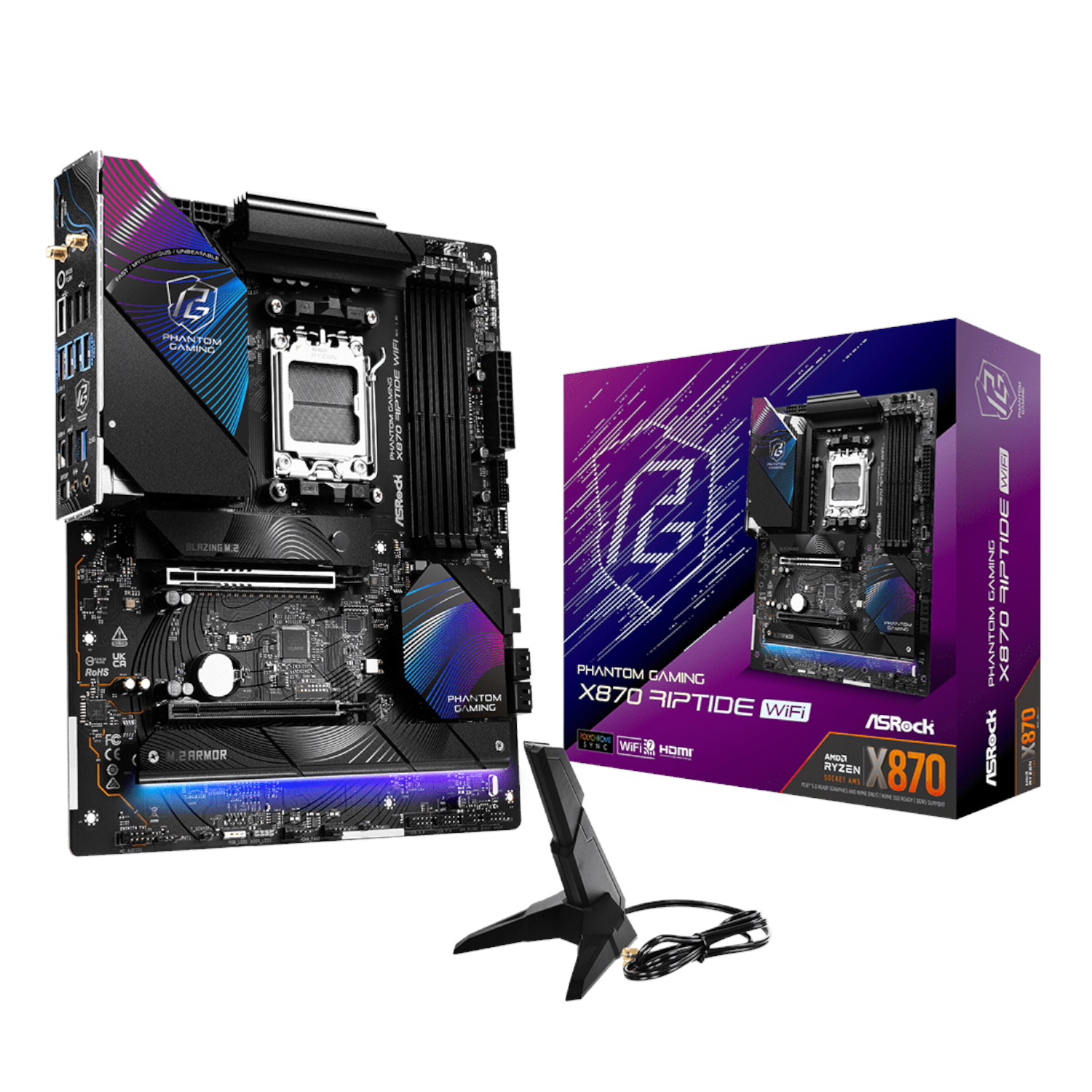

ASRock X870 Riptide | AMD AM5 Socket | Wi-Fi 7 & 2.5G LAN | DDR5-8000+ OC | PCIe 5.0 – New
R6,335.63
Built to Ride the Next-Gen Wave
The ASRock X870 Riptide is engineered for gamers and builders who refuse to compromise. With AMD X870 chipset support for Ryzen 9000, 8000, and 7000 Series processors, this board delivers the raw horsepower to dominate in every game, stream, and creative workload — right out of the box.
Blazing Storage, Zero Bottlenecks
Three M.2 slots including a Gen5 x4 Blazing M.2 slot capable of up to 128 Gb/s means your games load before your opponents even blink. Pair that with PCIe 5.0 GPU support and you have a platform built to stay relevant for years to come.
Stay Connected, Stay Ahead
Wi-Fi 7 and Killer 2.5G LAN keep your connection razor-sharp during the most intense online sessions, while dual USB4 Type-C rear ports at 40 Gb/s make transferring massive files or connecting next-gen peripherals effortless and future-proof.
Light It Up Your Way
Polychrome SYNC and SignalRGB support let you coordinate addressable RGB lighting across your entire build, while Nahimic 7.1 HD Audio powered by the Realtek ALC4082 codec wraps you in immersive, spatial sound that puts you right inside the action.
11 in stockIn stock with Supplier - Ships in 2-3 working days
Compare|
CPU Socket
|
AMD AM5 |
|---|---|
|
Supported Processors
|
AMD Ryzen™ 9000, 8000, and 7000 Series |
|
Chipset
|
AMD X870 |
|
Memory Slots
|
4 × DDR5 DIMM slots, up to 256GB |
|
Memory Speed
|
DDR5-8000+ (OC), supports AMD EXPO™ profiles |
|
PCB Layers
|
8-Layer PCB |
|
Operating System
|
Microsoft Windows 10 64-bit / Windows 11 64-bit |
|
PCIe Slot 1 (CPU)
|
1 × PCIe 5.0 x16 (PCIE1), supports x16 mode — Steel Reinforced, 15μ Gold Contact |
|---|---|
|
PCIe Slot 2 (Chipset)
|
1 × PCIe 4.0 x16 (PCIE2), supports x4 mode |
|
M.2 Key E Slot
|
1 × Vertical M.2 Socket (Key E), type 2230 Wi-Fi/BT PCIe module |
|
Multi-GPU
|
Supports AMD CrossFire™ |
|
M.2 Slot 1 (CPU) — Blazing
|
1 × M.2 Socket (M2_1, Key M), type 2280, PCIe Gen5 x4 — up to 128 Gb/s |
|---|---|
|
M.2 Slot 2 (Chipset) — Hyper
|
1 × M.2 Socket (M2_2, Key M), type 2230/2260/2280, PCIe Gen4 x4 — up to 64 Gb/s |
|
M.2 Slot 3 (Chipset) — Hyper
|
1 × M.2 Socket (M2_3, Key M), type 2260/2280, PCIe Gen4 x4 — up to 64 Gb/s |
|
SATA Ports
|
4 × SATA3 6.0 Gb/s Connectors (ASMedia ASM1061) |
|
LAN
|
Killer E3100G 2.5 Gbps |
|---|---|
|
Wi-Fi
|
Integrated Wi-Fi 7 |
|
Bluetooth
|
Bluetooth 5.4 |
|
Rear USB4 Type-C
|
2 × USB4 Type-C (40 Gb/s) |
|
Rear USB 3.2 Gen2 Type-A
|
2 × USB 3.2 Gen2 Type-A (10 Gb/s) |
|
Rear USB 3.2 Gen1 Type-A
|
3 × USB 3.2 Gen1 Type-A |
|
Rear USB 2.0
|
4 × USB 2.0 |
|
Front Panel USB
|
1 × USB 3.2 Gen2x2 Type-C Header (20 Gb/s), 2 × USB 3.2 Gen1 Headers (4 ports), 2 × USB 2.0 Headers (4 ports) |
|
Video Output
|
1 × HDMI Port |
|
Audio Ports
|
1 × Line Out Jack (Gold), 1 × Microphone Input Jack (Gold), 1 × Optical SPDIF Out |
|
LAN Port
|
1 × RJ-45 |
|
Antenna Ports
|
2 × Antenna Ports |
|
Audio Codec
|
Realtek ALC4082 |
|---|---|
|
Channels
|
7.1 Nahimic HD Audio |
|
Form Factor
|
ATX — 30.5 cm × 24.4 cm |
|---|---|
|
RGB Lighting
|
Polychrome SYNC, SignalRGB support, 1 × RGB LED Header, 3 × Addressable LED Headers |
|
Cooling Headers
|
2 × CPU Fan (4-pin), 3 × Chassis Fan (4-pin), 1 × AIO Pump (4-pin) — all Smart Fan Speed Control |
|
Power Connectors
|
1 × 24-pin ATX, 2 × 8-pin 12V (Hi-Density) |
|
Additional Headers
|
1 × Front Panel Audio, 1 × SPI TPM Header, 1 × Thermistor Cable Header, 1 × Power LED & Speaker Header |
|
BIOS
|
256 Mb AMI UEFI BIOS with BIOS Flashback |
|---|---|
|
Software
|
ASRock Phantom Gaming Tuning, Polychrome SYNC, Instant Flash |
|
Included Accessories
|
Motherboard × 1, SATA Cables × 2, Wi-Fi Antenna × 1, ARGB Splitter Cable × 1, Thermistor Cable × 1, User Manual × 1 |
|---|
| Weight | 1.355 kg |
|---|---|
| Dimensions | 34.6 × 28.1 × 7.5 cm |
| Brand |
ASRock |
| Colour |
Black |
| Warranty |
36 Months |
