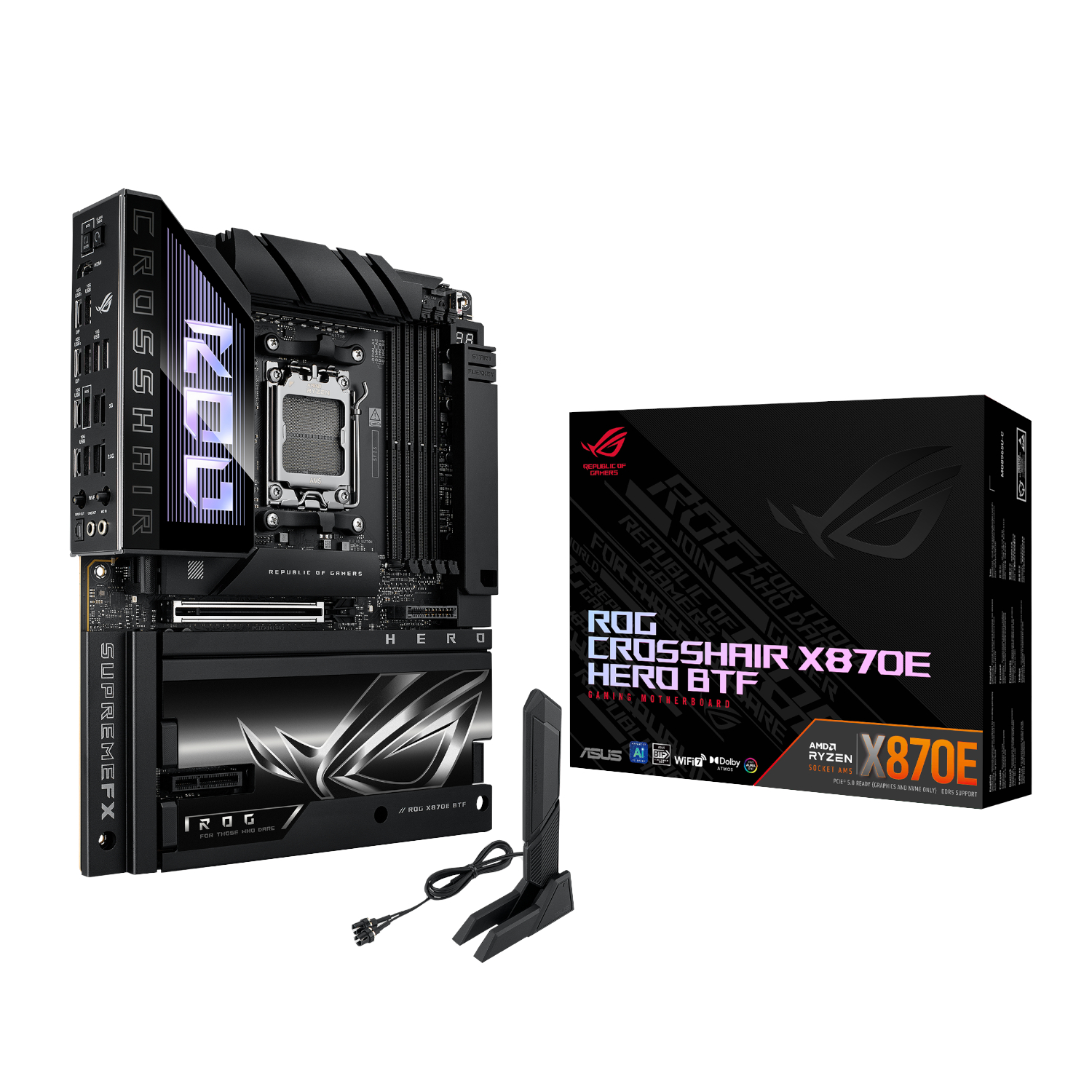

ASUS ROG Crosshair X870E Hero BTF | AMD AM5 Socket | PCIe 5.0 | Wi-Fi 7 & Dual Ethernet | DDR5 256GB – New

R14,935.83

Build Clean. Build Mean. The BTF Revolution is Here.

The ASUS ROG Crosshair X870E Hero BTF throws the rulebook on cable clutter out the window. With its revolutionary hidden-connector design tucking away GPU power, USB and fan cables behind the scenes, your build finally looks as savage as it performs. Paired with a BTF-compatible chassis and GPU, this is the showpiece your tempered glass case deserves.

Ryzen 9000 Ready — No Compromises, No Bottlenecks.

Engineered around the AMD X870E chipset and AM5 platform, the Crosshair X870E Hero BTF is purpose-built for AMD Ryzen 9000, 8000 and 7000 Series processors. With PCIe 5.0 across both CPU lanes and M.2 storage slots, plus DDR5 memory screaming at 8200+ MT/s, this board ensures your CPU never waits on anything — ever.

Connected to Everything, Limited by Nothing.

Whether you’re pushing frames at 4K, streaming to thousands or backing up terabytes in seconds, the Crosshair X870E Hero BTF keeps pace. Dual USB4 40Gbps ports, Wi-Fi 7 with 320MHz bandwidth, Bluetooth 5.4, and both Intel 2.5Gb and Realtek 5Gb Ethernet mean your rig stays ahead of every bottleneck — wired or wireless.

Audio That Hits as Hard as Your FPS.

ROG SupremeFX with the ALC4082 codec and ESS ES9219 QUAD DAC delivers 120dB SNR playback at 32-bit/384kHz, through gold-plated jacks with SupremeFX shielding to kill interference. Whether you’re deep in a raid or watching a cinematic cutscene, every sound lands with surgical precision.

2 in stockIn stock with Supplier - Ships in 2-3 working days

Compare
SKU: ROGCROSSHAIRX870EHEROBTF Categories: , , , Tags: , , , , ,
Description
Tech Specs
Performance
CPU Socket
AMD Socket AM5
Supported Processors
AMD Ryzen™ 9000, 8000 & 7000 Series Desktop Processors
Chipset
AMD X870E
Memory Slots
4 x DIMM slots, max. 256GB DDR5
Memory Speed
Up to 8200+ MT/s (OC) with Ryzen™ 9000 Series; 8600+ MT/s (OC) with Ryzen™ 8000 Series; 8000+ MT/s (OC) with Ryzen™ 7000 Series
Memory Architecture
Dual-Channel; Supports AMD EXPO™, AEMP, DIMM Fit, DIMM Fit Pro, NitroPath DRAM Technology; ECC & Non-ECC Un-buffered
Operating System
Windows® 11
BIOS
256Mb Flash ROM, UEFI AMI BIOS
Expansion & Storage
PCIe Slots (Ryzen™ 9000 & 7000)
1 x PCIe 5.0 x16 with Q-Release Slim (supports x16 or x8/x4/x4 modes)
PCIe Slots (Chipset)
1 x PCIe 4.0 x4
M.2 Slots
5 x M.2 slots (Key M); M.2_1, M.2_2, M.2_3 support PCIe 5.0 x4 (Ryzen™ 9000 & 7000); M.2_4 & M.2_5 support PCIe 4.0 x4 (Chipset); types 2242/2260/2280
SATA Ports
4 x SATA 6Gb/s ports
RAID Support
AMD RAIDXpert2: RAID 0/1/5/10 (Ryzen™ 9000); RAID 0/1 (Ryzen™ 8000); RAID 0/1/10 (Ryzen™ 7000)
Connectivity
Ethernet
1 x Intel® 2.5Gb Ethernet; 1 x Realtek 5Gb Ethernet; ASUS LANGuard
Wi-Fi
Wi-Fi 7 (MediaTek MT7927), 2×2, 802.11be, 2.4/5/6GHz, 320MHz bandwidth
Bluetooth
Bluetooth® 5.4
Rear USB
2 x USB4® 40Gbps (Type-C®); 6 x USB 10Gbps (Type-A); 2 x USB 10Gbps (Type-C®)
Front USB
2 x USB 20Gbps connectors (Type-C®); 2 x USB 5Gbps headers (4 ports); 2 x USB 2.0 headers (4 ports)
Video Output
1 x HDMI™ 2.1 (4K@60Hz); 2 x USB4® Type-C® (DisplayPort 1.4a, max 4K@60Hz)
Audio
Audio Codec
ROG SupremeFX 7.1 Surround Sound, ALC4082
DAC
ESS® ES9219 QUAD DAC
SNR
120dB SNR stereo playback; 110dB SNR recording input
Playback Resolution
Up to 32-bit/384kHz on front panel
Audio Features
SupremeFX Shielding Technology; Gold-plated audio jacks; Rear optical S/PDIF out; Premium audio capacitors; Impedance sense for front & rear headphone outputs
Design
Form Factor
ATX (30.5cm x 24.4cm)
BTF Hidden-Connector Design
Hidden motherboard, GPU power, USB and fan connectors; Graphics card high-power slot up to 600W for BTF GPUs; 1 x 12V-2X6 Auxiliary power connector
Lighting
Polymo Lighting II; 3 x Addressable Gen2 headers; ARGB RGB extension cable included
Fan Headers
1 x 4-pin CPU Fan; 1 x 4-pin CPU OPT Fan; 1 x 4-pin AIO Pump; 4 x 4-pin Chassis Fan; 1 x W_PUMP+
Power Connectors
1 x 24-pin Main Power; 2 x 8-pin +12V CPU Power
Back Panel Features
BIOS FlashBack™ button; Clear CMOS button; FlexKey button; Start button
Manageability
WOL by PME
Colour
Black
In the Box
Included Accessories
ASUS ROG Crosshair X870E Hero BTF Motherboard x1; ARGB RGB extension cable x1; SATA 6Gb/s cables x4; ASUS WiFi Q-Antenna x1; Q-connector x1; M.2 Q-Latch package x2; M.2 Q-Slide package x3; M.2 rubber package x5; USB drive with utilities and drivers x1; Quick start guide x1
Additional information
Brand

ASUS

Colour

Black

Warranty

36 Months
