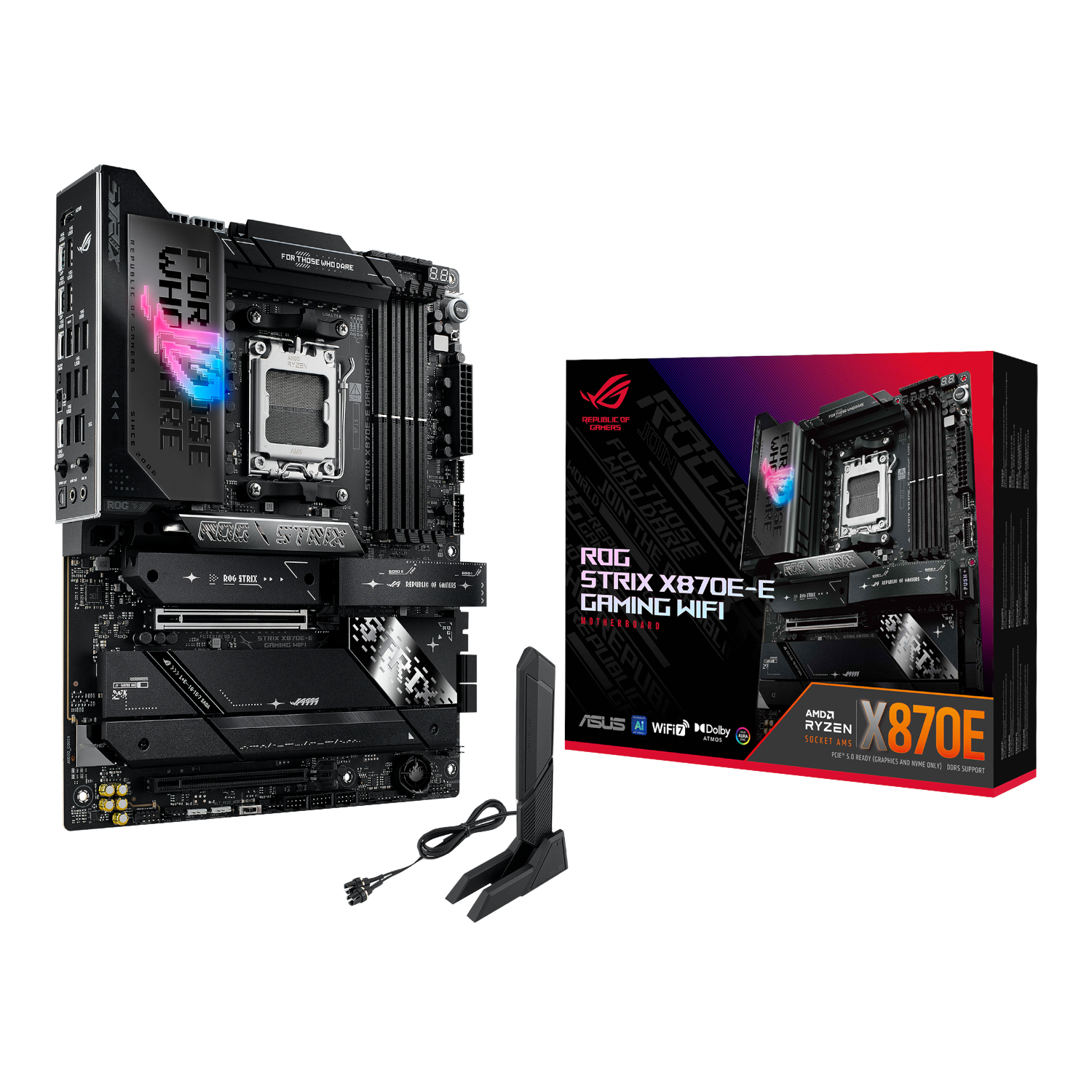

ASUS ROG STRIX X870E-E | AMD X870E Chipset | AM5 Socket | Wi-Fi 7 | ATX Form Factor – New
R12,122.67
Command Centre for Champions
The ROG STRIX X870E-E GAMING WIFI is more than a motherboard — it’s the nerve centre of your ultimate gaming rig. Built on the AMD X870E chipset with full AM5 socket support, it gives your Ryzen 9000, 8000, and 7000 series CPU the headroom to perform at its absolute peak, whether you’re deep in a ranked match or rendering your next big project.
Zero Lag, Zero Compromise Connectivity
With integrated Wi-Fi 7 delivering up to 6.5Gbps wirelessly and Realtek 5Gb Ethernet on the wired side, your connection is as competitive as your gameplay. Whether you’re eliminating lag online or transferring massive files at blistering speed, this board keeps you ahead of the packet.
Built to Grow With You
Five M.2 slots, four SATA ports, PCIe 5.0 support, and 24 USB ports across the board mean your build has room to evolve. The standard ATX form factor makes installation straightforward, while ROG SupremeFX 7.1 audio ensures every sound — from footsteps to explosions — hits with full fidelity.
Out of stock
Compare|
CPU Socket
|
AMD Socket AM5 |
|---|---|
|
Compatible Processors
|
AMD Ryzen™ 9000, 8000 & 7000 Series Desktop Processors |
|
Chipset
|
AMD X870E |
|
Memory Slots
|
4 x DIMM slots, max. 256GB, DDR5 |
|
Memory Speed
|
Up to 8000+ MT/s (OC) with Ryzen™ 9000 & 7000 Series; up to 8400+ MT/s (OC) with Ryzen™ 8000 Series |
|
Memory Architecture
|
Dual Channel; Supports AMD EXPO™, ASUS AEMP, NitroPath DRAM Technology; ECC and Non-ECC Unbuffered DIMM |
|
BIOS
|
256 Mb Flash ROM, UEFI AMI BIOS |
|
Operating System
|
Windows® 11 64-bit |
|
PCIe Slots (Ryzen™ 9000 & 7000)
|
1 x PCIe 5.0 x16 (supports x16 mode) |
|---|---|
|
PCIe Slots (Ryzen™ 8000)
|
1 x PCIe 4.0 x16 (supports x8/x4 mode) |
|
PCIe Slots (X870E Chipset)
|
1 x PCIe 4.0 x16 (supports x4 mode) |
|
M.2 Slots
|
5 x M.2 slots (Key M); M.2_1 & M.2_2 & M.2_3 support PCIe 5.0 x4 (Ryzen™ 9000/7000); M.2_4 & M.2_5 support PCIe 4.0 x4 (X870E Chipset) |
|
SATA Ports
|
4 x SATA 6Gb/s ports |
|
RAID Support
|
AMD RAIDXpert2: PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10 |
|
Ethernet
|
1 x Realtek 5Gb Ethernet with ASUS LANGuard |
|---|---|
|
Wi-Fi
|
Wi-Fi 7 (802.11be), 2×2, 2.4/5/6GHz, up to 6.5Gbps, 320MHz bandwidth |
|
Bluetooth
|
Bluetooth® 5.4 |
|
Rear USB Ports
|
2 x USB4® 40Gbps (Type-C®); 1 x USB 20Gbps (Type-C® with up to 30W PD); 10 x USB 10Gbps (9 x Type-A + 1 x Type-C®) |
|
Front USB Headers
|
1 x USB 20Gbps (Type-C®); 2 x USB 5Gbps headers (4 ports); 3 x USB 2.0 headers (6 ports) |
|
Video Output
|
1 x HDMI™ 2.1 (max 4K@60Hz); 2 x USB4® Type-C® DisplayPort 1.4a output (max 4K@60Hz) |
|
Audio
|
ROG SupremeFX 7.1 Surround Sound, ALC4080 CODEC, 120dB SNR playback, 110dB SNR recording, up to 32-Bit/384kHz; Savitech SV3H712 AMP; Gold-plated jacks; Optical S/PDIF out |
|
Manageability
|
WOL by PME, PXE |
|
Form Factor
|
ATX |
|---|---|
|
Dimensions
|
30.5 cm x 24.4 cm |
|
Fan Headers
|
1 x CPU Fan, 1 x CPU OPT Fan, 1 x AIO Pump, 5 x Chassis Fan (all 4-pin) |
|
RGB Headers
|
3 x Addressable Gen 2 headers |
|
Power Connectors
|
1 x 24-pin Main Power; 2 x 8-pin +12V CPU Power |
|
Additional Features
|
BIOS FlashBack™ button; Clear CMOS button; FlexKey button; Start button; CPU Over Voltage jumper; Thermal Sensor header |
| Brand |
ASUS |
|---|---|
| Colour |
Black |
| Warranty |
36 Months |
