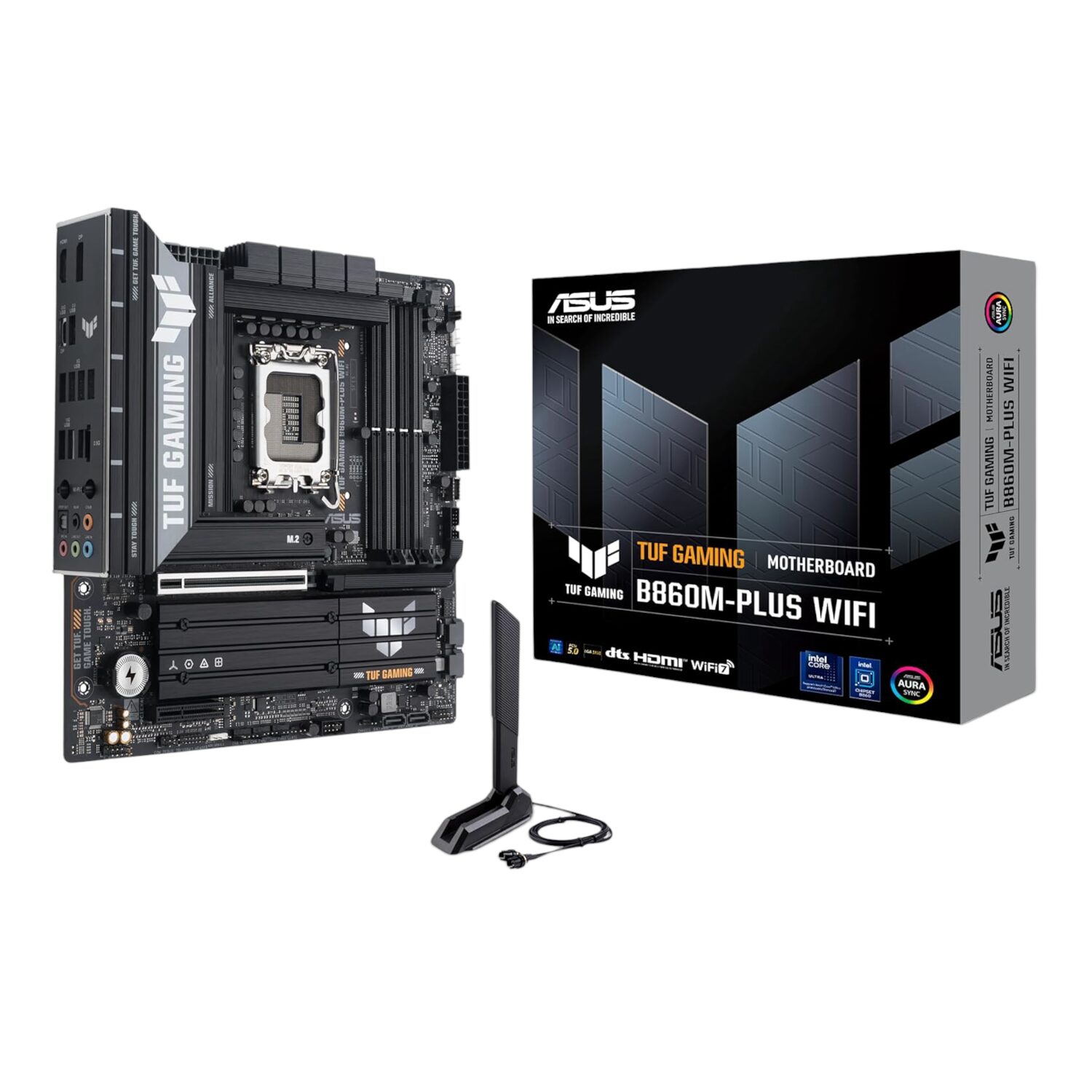

ASUS TUF Gaming B860M-Plus Wi-Fi | MATX | Intel LGA1851 | DDR5

ASUS TUF Gaming B860M-Plus Wi-Fi | mATX | Intel LGA1851 | DDR5 | PCIe 5.0 – New

R5,025.28

Built Tough. Wired for Victory.

The ASUS TUF Gaming B860M-Plus Wi-Fi is engineered for gamers who refuse to compromise. Military-grade components and a robust 12+1 DrMOS power stage design mean your rig stays stable through the most intense marathon sessions — whether you’re grinding ranked matches or pushing frame rates to the limit.

Next-Gen Speed, Zero Bottlenecks

With PCIe 5.0 support, DDR5 memory compatibility, and Wi-Fi 7 delivering up to 2.9Gbps wireless speeds, this board ensures your entire system keeps pace with the fastest GPUs, storage drives, and online experiences available today.

Smarter Builds, Cooler Runs

Q-LED diagnostics, M.2 Q-Latch tool-free installation, and Fan Xpert 2+ adaptive cooling make building and maintaining your system effortless — so you spend less time troubleshooting and more time dominating.

20 in stock

Compare

Tech Specs

Performance

CPU Support	Intel® Core™ Ultra Processors (Series 2), LGA1851; supports Intel® Turbo Boost Technology 2.0 and 3.0
Chipset	Intel® B860
Memory	4 x DIMM slots, max. 256GB, DDR5; up to 8800+ MT/s (OC), Non-ECC, Un-buffered (CUDIMM); Dual Channel; supports XMP & ASUS AEMPIII
Power Design	12+1 DrMOS power stages; 2 x 8-pin +12V ProCool connectors
Operating System	Windows 11 (22H2 and later)
BIOS	192Mb Flash ROM, UEFI AMI BIOS; ASUS CrashFree BIOS 3, EZ Flash, UEFI EZ Mode, MyHotkey

Expansion & Storage

Expansion Slots	1 x PCIe 5.0 x16 slot; 1 x PCIe 4.0 x4 slot
M.2 Slots	3 x M.2 slots (Key M): M.2_1 – PCIe 5.0 x4 (type 2280); M.2_2 – PCIe 4.0 x4 (type 2242/2260/2280); M.2_3 – PCIe 4.0 x4 (type 2280)
SATA	4 x SATA 6Gb/s ports

Connectivity

Ethernet	1 x Intel® 2.5Gb Ethernet with TUF LANGuard
Wi-Fi	Wi-Fi 7 (802.11be), 2×2, 2.4/5/6GHz, 160MHz bandwidth, up to 2.9Gbps
Bluetooth	Bluetooth® v5.4
Rear USB	1 x USB 20Gbps Type-C (DP Alt mode); 2 x USB 10Gbps Type-A; 4 x USB 5Gbps Type-A; 1 x USB 2.0 Type-A
Internal USB	1 x USB 20Gbps Type-C connector; 1 x USB 10Gbps Type-C connector; 1 x USB 5Gbps header (2 additional ports); 1 x USB 2.0 header (2 additional ports)
Video Output	1 x DisplayPort; 1 x HDMI™ port
Audio	Realtek 7.1 Surround Sound HD Audio CODEC; 5 x audio jacks; 1 x Optical S/PDIF out; supports 24-bit/192kHz playback; audio shielding; premium audio capacitors; dedicated audio PCB layers
Other Rear I/O	1 x Wi-Fi module antenna port; 1 x Realtek 2.5Gb Ethernet port
Internal Headers	1 x 4-pin CPU Fan; 1 x 4-pin CPU OPT Fan; 1 x 4-pin AIO Pump; 3 x 4-pin Chassis Fan; 1 x Thunderbolt™ (USB4®) header; 3 x Addressable Gen 2 headers; 1 x Aura RGB header; 1 x Clear CMOS; 1 x Chassis Intrusion; 1 x Front Panel Audio (AAFP); 1 x 10-1 pin Front System Panel header

Design

Form Factor	Micro-ATX (mATX), 24.4cm x 24.4cm
Cooling	VRM heatsink; M.2 heatsinks; hybrid fan headers; Fan Xpert 2+ technology
Protection Features	DIGI+ VRM; ESD Guards; TUF LANGuard; Overvoltage Protection; SafeSlot Core+; Stainless-Steel Back I/O; Military-grade TUF components
Q-Design Features	M.2 Q-Latch; PCIe Slot Q-Release; Q-Antenna; Q-Dashboard; Q-DIMM; Q-LED (CPU, DRAM, VGA, Boot Device)
RGB	AURA Sync; Addressable Gen 2 headers; Aura RGB header
Software	Armoury Crate (AURA Creator, AURA Sync, Fan Xpert 2+); ASUS DriverHub; TurboV Core; TUF GAMING CPU-Z; DTS Audio Processing; Two-way AI Noise Cancellation; Norton 360 (60-day trial); WinRAR (40-day trial)
In the Box	Motherboard x1; SATA 6Gb/s cables x2; ASUS WiFi Q-Antenna x1; M.2 Rubber Packages x2; TUF Gaming sticker x1; M.2 screw package x1; Quick start guide x1

Warranty

Warranty	ASUS Standard Warranty — please confirm local South African warranty terms with supplier

Brand	ASUS
Colour	Black
Warranty	36 Months

Brand

ASUS

Colour

Black

Warranty

36 Months
