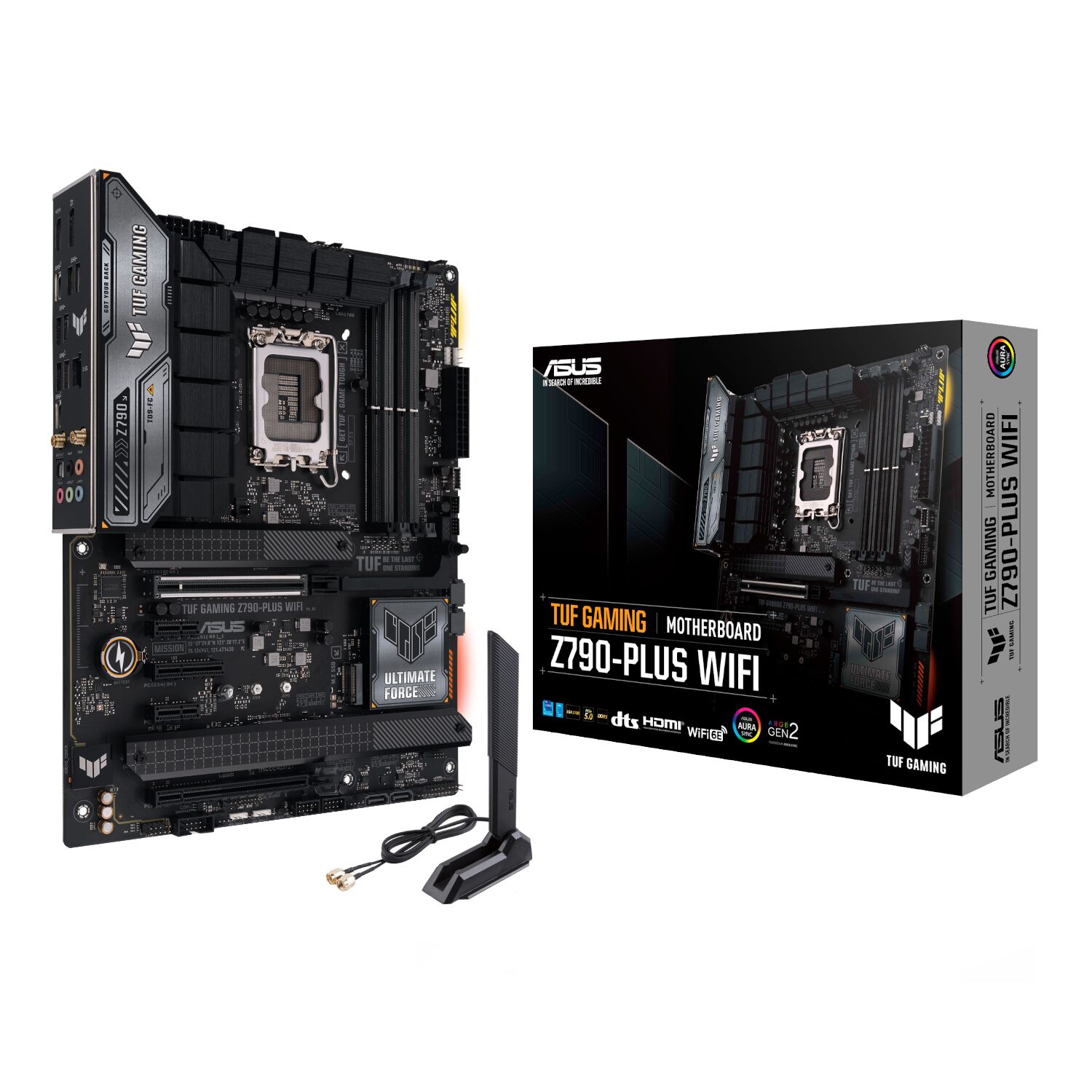

ASUS TUF Gaming Z790-Plus Wi-Fi | Intel LGA1700 | DDR5 7200MHz | PCIe 5.0 | 4x M.2 ATX Motherboard – New

R6,983.44

Built for Battles, Ready for the Future

The ASUS TUF Gaming Z790-Plus Wi-Fi is engineered for gamers who refuse to compromise. Military-grade TUF components, a robust 16+1 DrMOS power stage, and a six-layer PCB work in harmony to keep your system rock-solid through the longest gaming sessions — no throttling, no surprises.

Next-Gen Speed at Every Turn

With PCIe 5.0 x16 for your GPU, DDR5 memory support up to 7200MHz, and four M.2 slots for blazing-fast NVMe storage, this board eliminates bottlenecks before they start — giving you the headroom to push frame rates, load times, and multitasking to their absolute limits.

Lag-Free Online, Every Single Time

Wi-Fi 6E with tri-band 2.4/5/6GHz support, Intel 2.5Gb Ethernet, and Bluetooth 5.3 keep you connected at lightning speed — whether you’re mid-match or transferring massive game libraries across your network. Two-Way AI Noise Cancellation ensures your voice comes through crystal clear on comms.

Your Build, Your Aesthetic

Addressable Gen 2 RGB headers and full Aura Sync compatibility let you personalise every inch of your rig with dynamic lighting effects. Armoury Crate puts system monitoring, fan control, and lighting management all in one place, so you spend less time tweaking and more time gaming.

3 in stock

Description
Tech Specs
Performance
CPU Socket
Intel® LGA1700 — Compatible with 14th, 13th & 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors
Chipset
Intel® Z790
Memory Slots
4 x DIMM, Max. 192GB, DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC Unbuffered — Dual Channel, Intel XMP & OptiMem II supported
Power Delivery
16+1 DrMOS Power Stages, Six-Layer PCB, ProCool Sockets
Operating System
Windows® 11, Windows® 10 64-bit
Graphics & Expansion
PCIe Slots
1 x PCIe 5.0 x16 (CPU) | 1 x PCIe 4.0 x16 (supports x4 mode, Z790) | 1 x PCIe 4.0 x4 (Z790) | 2 x PCIe 3.0 x1 (Z790)
Video Output
1 x DisplayPort, 1 x HDMI®
Storage
M.2 Slots
4 x M.2 slots (Key M): M.2_1 (PCIe 4.0 x4, types 2242/2260/2280/22110, CPU) | M.2_2 (PCIe 4.0 x4, types 2242/2260/2280, Z790) | M.2_3 (PCIe 4.0 x4, types 2242/2260/2280/22110, Z790) | M.2_4 (PCIe 4.0 x4 & SATA, types 2242/2260/2280, Z790)
SATA Ports
4 x SATA 6Gb/s ports
Connectivity
Ethernet
1 x Intel® 2.5Gb Ethernet with TUF LANGuard
Wi-Fi
Wi-Fi 6E (802.11 a/b/g/n/ac/ax), 2×2, supports 2.4GHz / 5GHz / 6GHz
Bluetooth
Bluetooth® v5.3
Rear USB
1 x USB 3.2 Gen 2×2 Type-C® | 3 x USB 3.2 Gen 2 (2x Type-A + 1x Type-C®) | 4 x USB 3.2 Gen 1 Type-A — Total: 8 Rear USB Ports
Front USB Headers
1 x USB 3.2 Gen 2 (Type-C®) connector | 1 x USB 3.2 Gen 1 header (2 additional ports) | 2 x USB 2.0 headers (4 additional ports) — Total: 7 Front USB Ports
Audio
Realtek S1220A 7.1 Surround Sound HD Audio CODEC — 120dB SNR stereo output, 113dB SNR input, up to 32-bit/192kHz playback, Optical S/PDIF out, Audio Shielding, Premium capacitors
Design
Form Factor
ATX — 30.5 cm x 24.4 cm
RGB & Lighting
3 x Addressable Gen 2 headers, 1 x Aura RGB header — Aura Sync compatible
Fan Headers
1 x 4-pin CPU Fan | 1 x 4-pin CPU OPT Fan | 1 x 4-pin AIO Pump | 4 x 4-pin Chassis Fan — Fan Xpert 4 with AI Cooling II
Thermal Features
Enlarged VRM heatsinks, M.2 heatsinks, Hybrid Fan headers
Protection Features
SafeSlot Core+, Stainless-Steel Back I/O, ESD Guards, Overvoltage Protection, TUF LANGuard, DIGI+ VRM, SafeDIMM
BIOS
192Mb Flash ROM, UEFI AMI BIOS — EZ Mode, CrashFree BIOS 3, EZ Flash 3
Software
Armoury Crate, Aura Sync, Fan Xpert 4, Two-Way AI Noise Cancellation, AI Suite 3, DTS Audio Processing, MyASUS, Norton 360 for Gamers
In the Box
Motherboard x1, SATA 6Gb/s cables x2, ASUS Wi-Fi antenna x1, TUF Gaming sticker x1, M.2 Rubber Packages x2, M.2 screw package x1, TUF Certification card x1, User guide x1
Additional information
Brand

ASUS

Colour

Black

Warranty

36 Months
