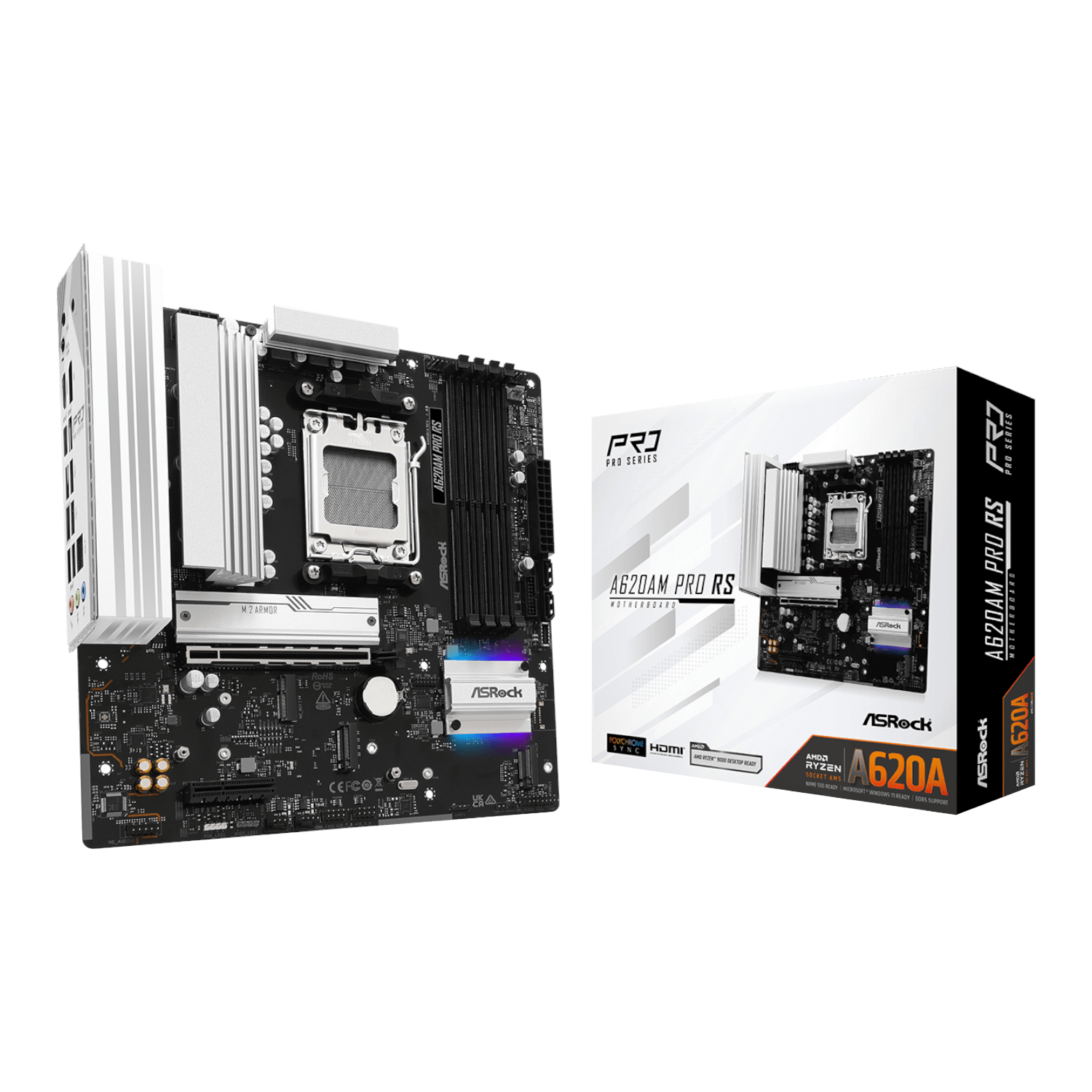

ASRock A620AM Pro RS | AMD AM5 Socket | DDR5 Up to 256GB | PCIe 4.0 | Micro ATX – New

R2,065.49

Your AMD Ryzen Build Starts Here

The ASRock A620AM Pro RS gives you a rock-solid launchpad for AMD Ryzen 7000, 8000, and 9000 series builds — all in a compact Micro ATX footprint that fits neatly into smaller cases without sacrificing expandability or power delivery.

DDR5 Headroom That Grows With You

With four DDR5 DIMM slots and support for up to 256GB of high-speed memory, this board is ready for whatever your workload throws at it — whether that’s gaming, video editing, or running demanding productivity applications simultaneously.

Storage and Connectivity Without Compromise

Two Hyper M.2 Gen4 slots, a third Gen3 M.2, SATA3 ports, 2.5G LAN, and a full suite of USB 3.2 ports mean you’ll never be hunting for the right connector — everything you need is already on board and ready to go.

9 in stock

SKU: A620AM PRO RS Categories: , , Tags: , , ,
Description
Tech Specs
Performance
CPU Socket
AMD AM5
Supported Processors
AMD Ryzen™ 9000, 8000, and 7000 Series
Chipset
AMD A620A
Power Design
6+2+1 Phase Power Design, Dr.MOS
BIOS
256Mb AMI UEFI Legal BIOS with GUI support; ASRock Full HD UEFI; BIOS Flashback supported
Operating System
Microsoft Windows® 10 64-bit / 11 64-bit
Memory
Memory Type
DDR5 (Dual Channel)
Memory Slots
4 x DDR5 DIMM Slots
Max Memory
256GB
Memory Speed
Up to 8000+ (OC); supports DDR5 ECC/non-ECC un-buffered; up to 7200+ (OC)
Memory Profiles
Supports XMP and EXPO memory modules
Display
Integrated Graphics
Integrated AMD RDNA™ Graphics (actual support may vary by CPU)
HDMI
1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3, max. resolution up to 4K 120Hz
DisplayPort
1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3, max. resolution up to 4K 120Hz
Storage
M.2 Slots
2 x Hyper M.2 (Key M, PCIe Gen4x4, 64 Gb/s, type 2260/2280); 1 x Ultra M.2 (Key M, PCIe Gen3x4, 32 Gb/s, type 2260/2280)
SATA
2 x SATA3 6.0 Gb/s Connectors
RAID
Supports RAID 0, RAID 1, and RAID 10 for SATA and M.2 NVMe storage devices
Expansion Slots
PCIe Slots
1 x PCIe 4.0 x16 (PCIE1, x16 mode); 1 x PCIe 3.0 x16 (PCIE2, x2 mode)
M.2 WiFi
1 x M.2 Key E Socket (type 2230, Wi-Fi/BT PCIe module)
Connectivity
LAN
Realtek Dragon RTL8125BG 2.5 Gigabit LAN (10/100/1000/2500 Mb/s)
USB (Rear)
3 x USB 3.2 Gen1 Type-A; 1 x USB 3.2 Gen1 Type-C; 4 x USB 2.0
USB (Front Headers)
2 x USB 3.2 Gen1 Type-A; 1 x USB 3.2 Gen1 Type-C; 4 x USB 2.0
Audio
Realtek ALC897 7.1 CH HD Audio Codec; Nahimic Audio; HD Audio Jacks: Line In / Front Speaker / Microphone
Antenna
2 x Antenna Mounting Points
Design
Form Factor
Micro ATX — 9.6-in x 9.6-in (24.4 cm x 24.4 cm)
RGB
1 x RGB LED Header (12V/3A, 36W); 3 x Addressable LED Headers (5V/3A, 15W); ASRock Polychrome SYNC
Fan Headers
1 x CPU Fan (4-pin); 1 x CPU/Water Pump Fan (4-pin); 3 x Chassis/Water Pump Fan (4-pin)
Power Connectors
1 x 24-pin ATX; 1 x 8-pin 12V (Hi-Density Power Connector)
Certifications
FCC, CE; ErP/EuP Ready
Software
ASRock A-Tuning; ASRock Dragon 2.5G LAN Software; ASRock Polychrome SYNC; ASRock Auto Driver Installer; ASRock Instant Flash
In the Box
Included Accessories
ASRock A620AM Pro RS Motherboard x1; SATA Cables x2; Screws for M.2 Sockets x4; Standoff for M.2 Socket x1
Additional information
Weight 1.23 kg
Dimensions 29.6 × 26.4 × 5.8 cm
Brand

ASRock

Colour

Black

Warranty

36 Months
