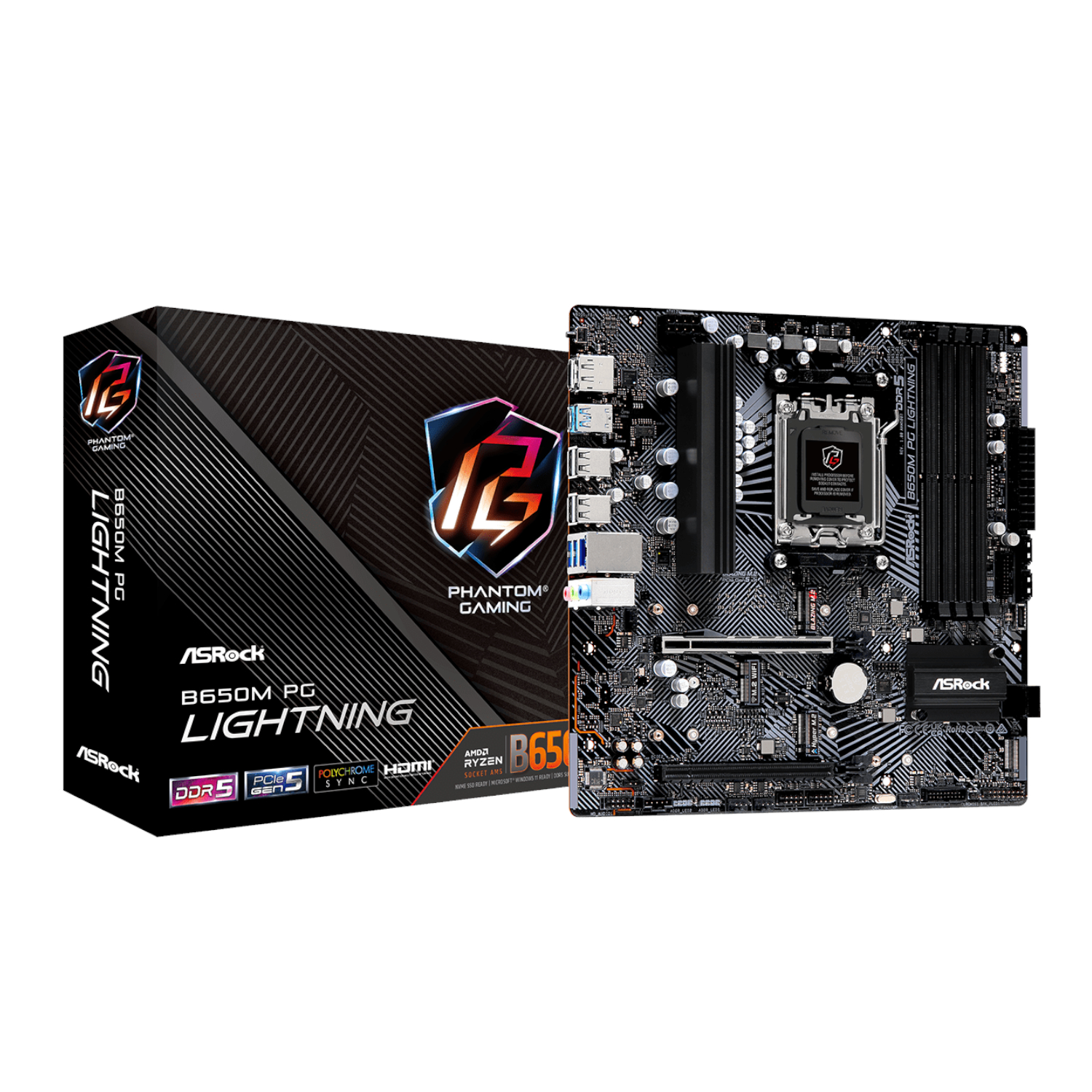

ASRock B650M PG Lightning | AMD AM5 Socket | DDR5 up to 256GB | PCIe Gen5 M.2 | Micro ATX – New
R2,479.31
Built for AMD’s Best — Ready for What’s Next
The ASRock B650M PG Lightning is engineered to keep pace with AMD’s most powerful Ryzen processors — from the 7000 all the way through to the latest 9000 series. Whether you’re building your first serious gaming rig or upgrading to a next-gen platform, this board gives you a rock-solid AM5 foundation without locking you into yesterday’s tech.
DDR5 Speed That Refuses to Slow You Down
With support for up to 256GB of DDR5 memory running at speeds up to 7200+ MHz (OC), this motherboard keeps your system snappy whether you’re deep in a gaming session, editing video, or juggling a dozen browser tabs. XMP and EXPO profiles mean your high-speed RAM runs exactly as intended, right out of the box.
Storage That Moves at the Speed of Ambition
A PCIe Gen5 M.2 slot delivers blistering SSD speeds of up to 128 Gb/s, while additional Gen4 M.2 slots and four SATA3 ports give you the flexibility to build your ideal storage setup. Whether it’s your OS drive, game library, or creative project files — everything loads fast and stays organised.
Compact Form, Full-Size Ambitions
The Micro ATX form factor means the B650M PG Lightning slots neatly into compact and mid-tower cases without sacrificing the features you need. With 2.5G LAN, a full suite of USB ports, HDMI and DisplayPort outputs, and ASRock Polychrome SYNC RGB lighting, this board punches well above its size class.
9 in stock
|
Socket
|
AMD AM5 |
|---|---|
|
Supported Processors
|
AMD Ryzen™ 9000, 8000 and 7000 Series |
|
Chipset
|
AMD B650 |
|
Power Phase
|
6+2+1 Power Phase, Dr.MOS |
|
Operating System
|
Microsoft Windows 10 64-bit / Windows 11 64-bit |
|
Memory Type
|
DDR5 |
|---|---|
|
Memory Slots
|
4 x DDR5 DIMM Slots (Dual Channel) |
|
Max Memory
|
256GB |
|
Memory Speed
|
Up to 7200+ MHz (OC) |
|
Memory Profiles
|
Supports XMP and EXPO |
|
ECC Support
|
DDR5 ECC / non-ECC, un-buffered |
|
M.2 Slot 1 (Blazing)
|
PCIe Gen5 x4 (128 Gb/s), type 2260/2280, NVMe |
|---|---|
|
M.2 Slot 2 (Hyper)
|
PCIe Gen4 x4 (64 Gb/s), type 2260/2280, NVMe |
|
M.2 Slot 3
|
PCIe Gen4 x2 (32 Gb/s), type 2260/2280, NVMe |
|
SATA
|
4 x SATA3 6.0 Gb/s |
|
RAID
|
RAID 0, RAID 1, RAID 10 (SATA and M.2 NVMe) |
|
Integrated Graphics
|
AMD RDNA™ (varies by CPU) |
|---|---|
|
HDMI
|
1 x HDMI 2.1, supports HDR, HDCP 2.3, up to 4K 120Hz |
|
DisplayPort
|
1 x DisplayPort 1.4 with DSC, supports HDCP 2.3, up to 4K 120Hz |
|
LAN
|
2.5 Gigabit LAN (Dragon RTL8125BG), 10/100/1000/2500 Mb/s |
|---|---|
|
Wi-Fi / Bluetooth
|
M.2 Key-E slot for Wi-Fi/BT module (not included) |
|
USB (Rear)
|
1 x USB 3.2 Gen2 Type-A (10 Gb/s), 1 x USB 3.2 Gen2 Type-C (10 Gb/s), 2 x USB 3.2 Gen1 Type-A, 4 x USB 2.0 |
|
USB (Front Headers)
|
1 x USB 3.2 Gen1 Type-C, 4 x USB 3.2 Gen1 Type-A, 4 x USB 2.0 |
|
Audio
|
Realtek ALC897, 7.1 CH HD Audio, Nahimic Audio |
|
Expansion Slots
|
1 x PCIe 4.0 x16 (x16 mode), 1 x PCIe 3.0 x16 (x4 mode) |
|
Multi-GPU
|
Supports AMD CrossFire™ |
|
Form Factor
|
Micro ATX, 9.6-in x 9.6-in (24.4 cm x 24.4 cm) |
|---|---|
|
RGB
|
1 x RGB LED Header, 3 x Addressable LED Headers, ASRock Polychrome SYNC |
|
Fan Headers
|
1 x CPU Fan (4-pin), 1 x CPU/Water Pump Fan (4-pin), 3 x Chassis/Water Pump Fan (4-pin) |
|
BIOS
|
256Mb AMI UEFI, ASRock Full HD UEFI, BIOS Flashback, Auto Driver Installer |
|
Certifications
|
FCC, CE, ErP/EuP Ready |
|
Warranty
|
Please contact EveryMonday for warranty details |
|---|
| Brand |
ASRock |
|---|---|
| Colour |
Black |
| Warranty |
36 Months |
