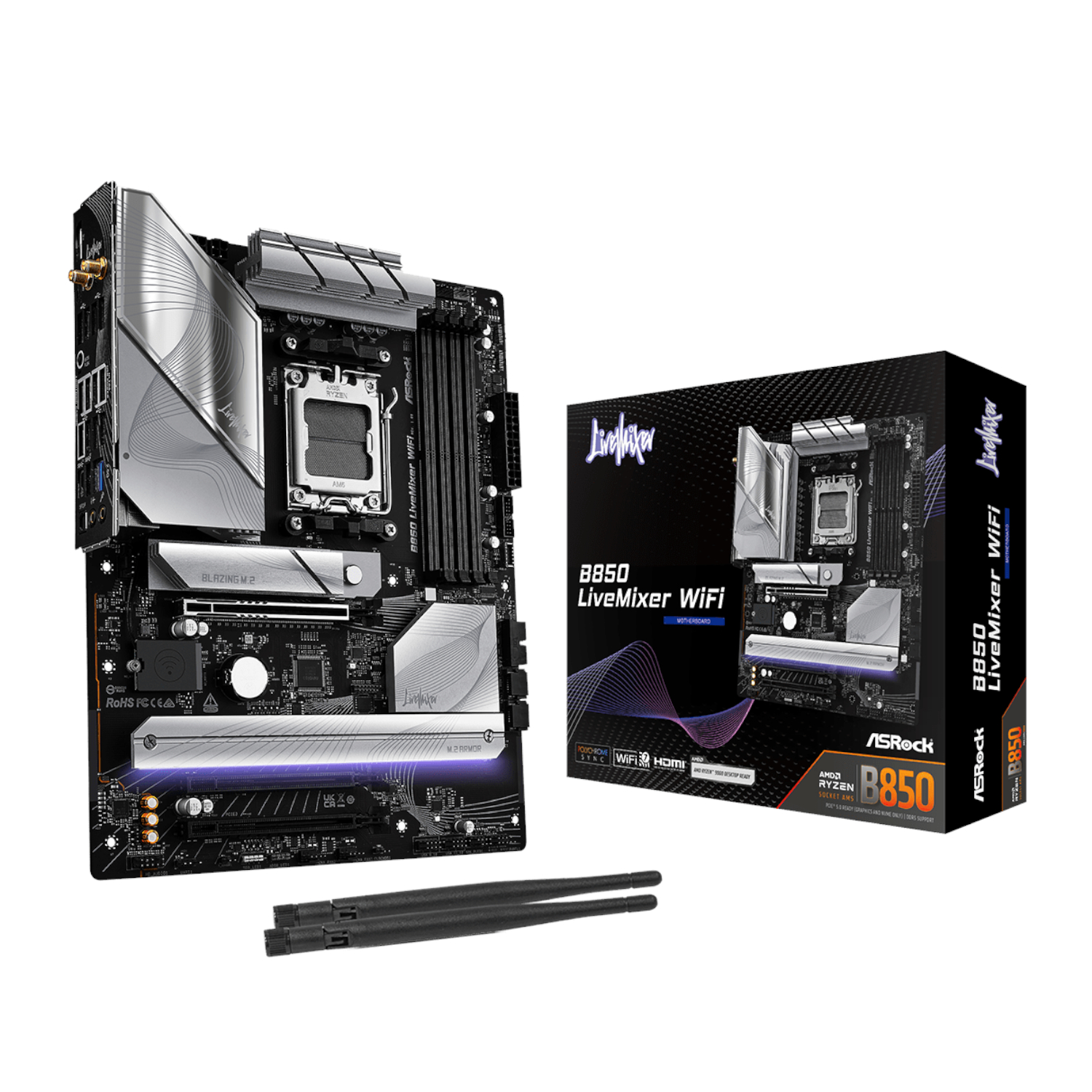

ASRock B850 LiveMixer WiFi | AMD AM5 ATX | DDR5 Up to 256GB | PCIe 5.0 | WiFi 7 – New
R4,019.05
Your Stream. Your Game. Your Stage.
The ASRock B850 LiveMixer WiFi is built for creators and gamers who refuse to compromise. Whether you’re live streaming to thousands, rendering your latest edit, or deep in a competitive match, this motherboard keeps everything running in perfect harmony — no bottlenecks, no dropouts, just pure, uninterrupted performance at the heart of your build.
Next-Gen Power, Ready When You Are
With support for AMD Ryzen 9000, 8000, and 7000 series processors on the AM5 socket, paired with DDR5 memory up to 256GB and a blazing PCIe Gen5 M.2 slot, this board is engineered to handle whatever you throw at it — today and well into the future.
Stay Connected at Every Speed
WiFi 7 and 2.5G LAN mean your online experience is faster and more stable than ever, while the generous USB lineup — including front-panel USB 3.2 Gen2x2 Type-C — ensures every peripheral, drive, and device connects without compromise.
Out of stock
Compare|
CPU Socket
|
AMD Socket AM5 — Supports Ryzen™ 9000, 8000, and 7000 Series Processors |
|---|---|
|
Chipset
|
AMD B850 |
|
Memory
|
4 x DDR5 DIMM Slots, Dual Channel, up to 256GB, DDR5 ECC/non-ECC un-buffered, up to 8000+ (OC), Supports XMP and EXPO |
|
Power Design
|
14+2+1 Phase Power Design, 80A Dr.MOS for VCore+SOC+MISC |
|
BIOS
|
256Mb AMI UEFI Legal BIOS with GUI Support, BIOS Flashback |
|
Operating System
|
Microsoft Windows 10 64-bit / Windows 11 64-bit |
|
Graphics Output
|
1 x HDMI 2.1 (up to 4K 120Hz, HDR, HDCP 2.3), 1 x DisplayPort 1.4 with DSC (up to 4K 120Hz, HDCP 2.3) |
|---|---|
|
Integrated Graphics
|
Integrated AMD RDNA™ Graphics (actual support may vary by CPU) |
|
M.2 Slots
|
1 x Blazing M.2 (PCIe Gen5x4, 128 Gb/s, type 2280), 1 x Hyper M.2 (PCIe Gen4x4, 64 Gb/s, type 2280), 1 x Hyper M.2 (PCIe Gen4x4, 64 Gb/s, type 2230/2242/2260/2280), M.2 Bottom Heatsink Support |
|---|---|
|
SATA
|
2 x SATA3 6.0 Gb/s Connectors |
|
RAID
|
RAID 0, RAID 1 for SATA; RAID 0, RAID 1, RAID 10 for M.2 NVMe |
|
LAN
|
Realtek Dragon RTL8125BG 2.5 Gigabit LAN (10/100/1000/2500 Mb/s), Dragon 2.5G LAN Software |
|---|---|
|
Wireless LAN
|
802.11be 2×2 WiFi 7 (2.4GHz / 5GHz / 6GHz), Supports IEEE 802.11a/b/g/n/ac/ax/axe/be, 160MHz Channel Bandwidth (6GHz), MU-MIMO |
|
Bluetooth
|
Bluetooth 5.4 |
|
USB (Rear)
|
1 x USB 3.2 Gen2 Type-C (10 Gb/s), 1 x USB 3.2 Gen2 Type-A (10 Gb/s), 4 x USB 3.2 Gen1 Type-A, 8 x USB 2.0 |
|
USB (Front Headers)
|
1 x USB 3.2 Gen2x2 Type-C Header (20 Gb/s), 2 x USB 3.2 Gen1 Headers (4 ports), 2 x USB 2.0 Headers (4 ports) |
|
Expansion Slots
|
1 x PCIe 5.0 x16 (PCIE1, x16 mode), 2 x PCIe 4.0 x16 (PCIE2/PCIE3, x4 mode), 1 x M.2 Key E (WiFi/BT Module, type 2230) |
|
Audio
|
Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio, Impedance Sensing on Rear Out, Individual PCB Layers for L/R Channel, Optical SPDIF Out |
|
Form Factor
|
ATX, 12.0-in x 9.6-in (30.5 cm x 24.4 cm) |
|---|---|
|
PCB Layers
|
8 Layer PCB |
|
RGB / LED
|
1 x RGB LED Header, 3 x Addressable LED Headers |
|
Fan Headers
|
2 x CPU Fan (4-pin, Smart Fan), 3 x Chassis Fan (4-pin, Smart Fan), 1 x AIO Pump (4-pin, Smart Fan) |
|
Certifications
|
FCC, CE, ErP/EuP Ready |
|
In the Box
|
ASRock B850 LiveMixer WiFi AM5 ATX Motherboard x1, SATA Data Cables x2, ASRock WiFi 2.4/5/6 GHz Antennas x2, Thermistor Cable x1 |
| Brand |
ASRock |
|---|---|
| Colour |
Black |
| Warranty |
36 Months |
