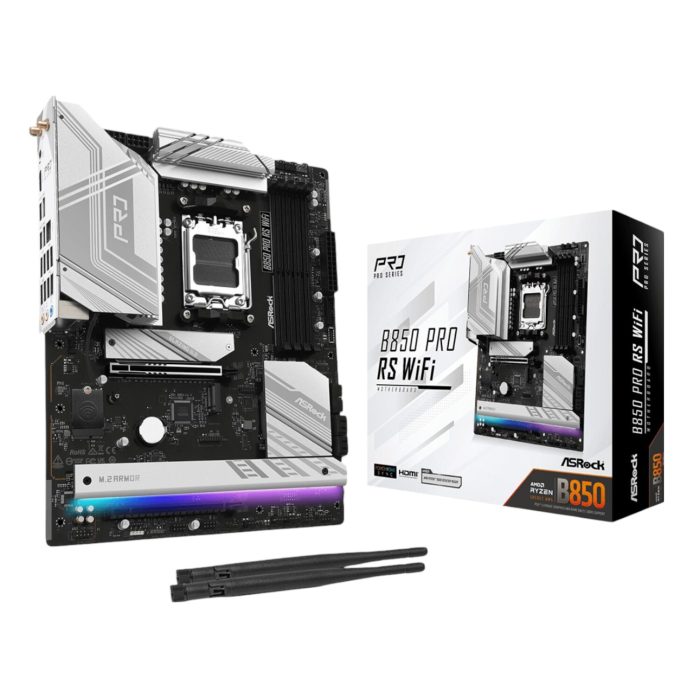

ASRock B850 Pro RS Wi-Fi | AMD AM5 | DDR5 Up to 8000+ MHz | PCIe 5.0 | ATX Motherboard – New
R3,623.88
Your Next Build Deserves a Serious Foundation
The ASRock B850 Pro RS Wi-Fi is built for those who refuse to compromise. Whether you’re assembling a high-octane gaming rig or a powerhouse content creation workstation, this board’s support for Ryzen 9000, 8000, and 7000 Series processors means you’re ready for whatever AMD throws at you next — today and well into the future.
Blazing Storage and Next-Gen GPU Bandwidth
With a PCIe 5.0 x16 reinforced steel slot and four M.2 slots — including a Gen5 x4 Hyper M.2 — you’ll never feel bottlenecked. Whether you’re loading massive game worlds in seconds or transferring creative project files at warp speed, this board keeps everything moving at the pace you demand.
Connected Without Compromise
Wi-Fi 6E with Bluetooth 5.2 and a 2.5G Realtek Dragon LAN ensure your rig stays connected at every level — whether you’re streaming, competing online, or pushing large files across your network. The full 6GHz Wi-Fi band on Windows 11 means less interference and more bandwidth exactly when you need it.
Build Smarter, Not Harder
BIOS Flashback lets you update firmware without a CPU installed, while the ASRock Post Status Checker takes the guesswork out of troubleshooting. Add in SignalRGB and Polychrome SYNC support for stunning addressable lighting, and you have a board that’s as satisfying to build with as it is to show off.
24 in stock
|
Socket
|
AMD AM5 |
|---|---|
|
Supported CPUs
|
AMD Ryzen™ 9000 / 8000G / 7000 Series |
|
Chipset
|
AMD B850 |
|
Memory Slots
|
4 x DDR5 DIMM (Dual-Channel), up to 256GB |
|
Memory Speed
|
Up to 8000+ MHz (OC), supports AMD EXPO & Intel XMP |
|
Memory Type
|
DDR5 ECC / Non-ECC Unbuffered |
|
Power Design
|
14+2+1 Phase Dr.MOS (80A), 8-Layer PCB |
|
Power Connectors
|
24-pin ATX + Dual 8-pin 12V |
|
PCIe Slots
|
1 x PCIe 5.0 x16 (Steel Slot, CPU); 1 x PCIe 4.0 x16 (x4 mode, Chipset) |
|---|---|
|
M.2 Slots
|
1 x Blazing M.2 Gen5 x4 (2280, CPU); 2 x Hyper M.2 Gen4 x4 (CPU & Chipset); 1 x Ultra M.2 Gen3 x4 (Chipset) |
|
SATA Ports
|
4 x SATA3 6.0 Gb/s |
|
RAID Support
|
RAID 0, 1 (SATA); RAID 0, 1, 10 (M.2 NVMe) |
|
Video Output
|
1 x HDMI 2.1 (4K@120Hz); 1 x USB 3.2 Gen1 Type-C (DP 1.4 Alt Mode, 4K@60Hz) |
|---|---|
|
Integrated Graphics
|
AMD RDNA™ (CPU dependent) |
|
LAN
|
Realtek Dragon RTL8125BG 2.5 GbE |
|---|---|
|
Wireless
|
Wi-Fi 6E (802.11ax) — 2.4GHz / 5GHz / 6GHz (6GHz requires Windows 11) |
|
Bluetooth
|
Bluetooth 5.2 |
|
Rear USB Ports
|
1 x USB 3.2 Gen2 Type-C; 1 x USB 3.2 Gen1 Type-C (DP Alt Mode); 4 x USB 3.2 Gen1 Type-A; 6 x USB 2.0 |
|
Internal USB Headers
|
1 x USB 3.2 Gen2x2 Type-C (20 Gb/s); 4 x USB 3.2 Gen1 Type-A; 4 x USB 2.0 |
|
Audio
|
Realtek ALC897 7.1 CH HD Audio with Nahimic Audio (Echo Cancellation, Noise Reduction, Sound Tracker) |
|
VRM Cooling
|
Aluminium VRM Heatsink |
|---|---|
|
M.2 Cooling
|
Oversized M.2 Heatsinks with Anti-Drop Screws; M.2 Bottom Heatsink Integrated into PCB |
|
Fan Headers
|
2 x CPU Fan; 4 x Chassis Fan; 1 x AIO Pump (Smart Fan Speed Control, up to 3A/36W per header) |
|
RGB Headers
|
1 x RGB LED (12V); 3 x Addressable RGB (5V) |
|
RGB Software
|
ASRock Polychrome SYNC & SignalRGB |
|
Form Factor
|
ATX (30.5 cm x 24.4 cm) |
|---|---|
|
PCB Layers
|
8-Layer PCB |
|
DIY Features
|
BIOS Flashback (CPU-less update); ASRock Post Status Checker; Reinforced PCIe Steel Slot; Flexible Adjustable I/O Shield; Auto Driver Installer via LAN |
|
OS Compatibility
|
Windows 11 64-bit (full Wi-Fi 6E support); Windows 10 64-bit |
|
Certifications
|
FCC, CE, ErP/EuP Ready |
|
Included
|
ASRock B850 Pro RS Wi-Fi ATX Motherboard x1; SATA Data Cables x2; ASRock Wi-Fi Antennas (2.5/5/6 GHz) x2 |
|---|
| Weight | 1.245 kg |
|---|---|
| Dimensions | 34.6 × 28.1 × 7.5 cm |
| Brand |
ASRock |
| Colour |
Black |
| Warranty |
36 Months |
