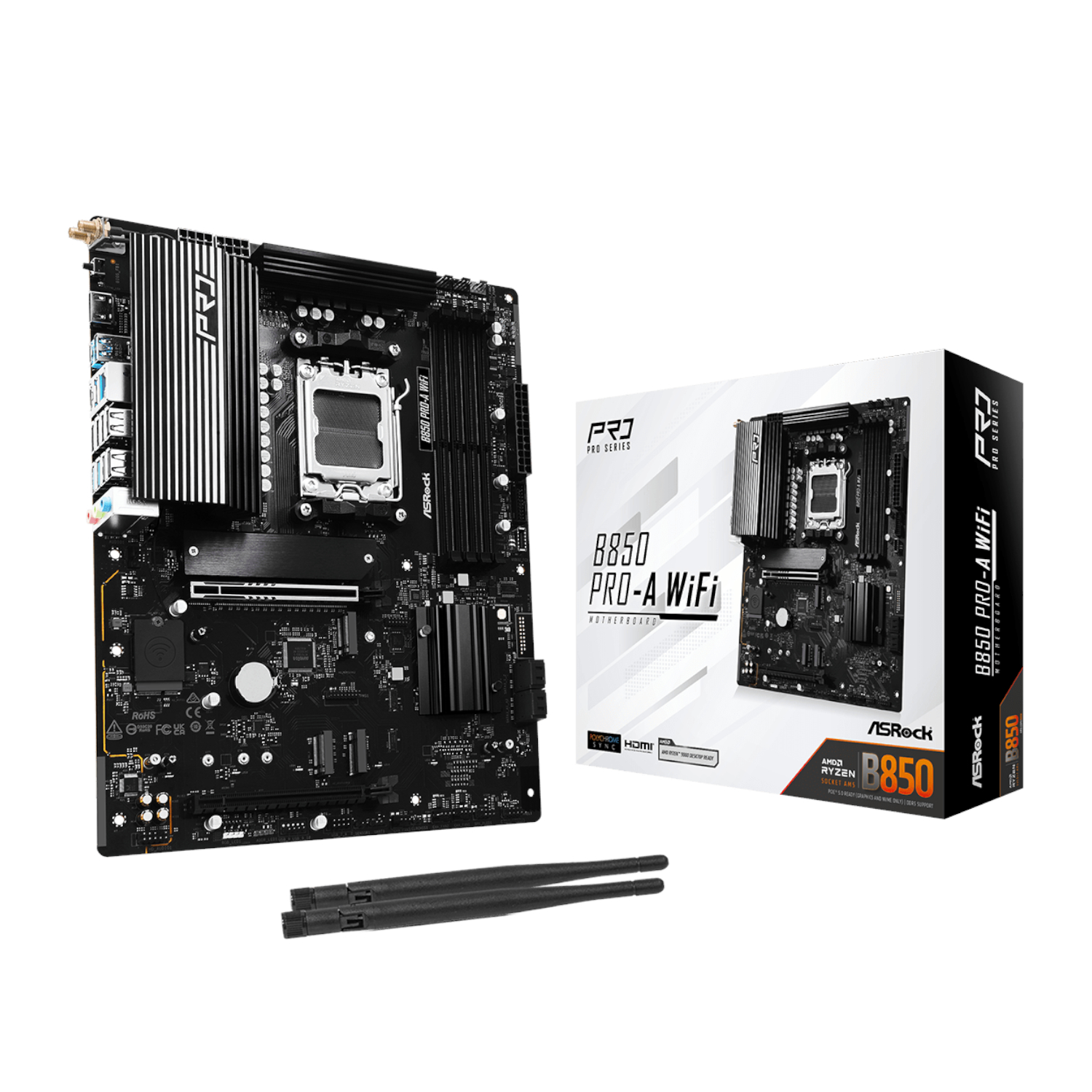

ASRock B850 Pro-A Wi-Fi | AMD AM5 ATX | DDR5 256GB | PCIe 5.0 | Wi-Fi 6E – New
R3,271.06
Your AMD Ryzen Build Starts Here
The ASRock B850 Pro-A Wi-Fi gives your AMD Ryzen™ 9000, 8000, or 7000 series processor the platform it deserves — a rock-solid ATX foundation with the headroom to grow. Whether you’re assembling a high-performance gaming rig or a capable workstation, this board delivers the stability and compatibility to bring your build to life.
Blazing Storage, Zero Bottlenecks
With a PCIe Gen5 M.2 slot pushing up to 128 Gb/s and three additional high-speed M.2 slots, your SSDs will never be the thing holding you back. Pair that with four SATA3 ports and RAID support, and you have a storage setup ready for anything from massive game libraries to professional workloads.
Connected Without Compromise
Wi-Fi 6E and 2.5G LAN keep you wired and wireless at the fastest speeds available, while a generous spread of USB ports — including USB 3.2 Gen2x2 Type-C — means your peripherals, displays, and external drives all have a home. HDMI 2.1 and USB-C DisplayPort output round out a connectivity suite built for modern multi-monitor setups.
RGB, Fan Control & Future-Ready BIOS
Dial in your aesthetics with Polychrome SYNC RGB headers and addressable LED support, while Smart Fan Speed Control keeps thermals in check across all your fans and AIO pump. BIOS Flashback means you can update firmware without even needing a CPU installed — making this board as builder-friendly as it is powerful.
20 in stock
|
Processor Support
|
AMD Socket AM5 — Ryzen™ 9000, 8000 and 7000 Series |
|---|---|
|
Chipset
|
AMD B850 |
|
Memory Slots
|
4 x DDR5 DIMM — Dual Channel, up to 256GB, DDR5 ECC/non-ECC un-buffered |
|
Memory Speed
|
Up to DDR5 8000+ (OC), supports XMP and EXPO |
|
Power Design
|
14+2+1 Phase Power Design, 80A Dr.MOS (VCore + SOC + MISC) |
|
BIOS
|
256Mb AMI UEFI with GUI — EZ Mode, Full HD UEFI, Instant Flash, BIOS Flashback |
|
Operating System
|
Microsoft Windows® 10 64-bit / 11 64-bit |
|
M.2 Slot 1 (Blazing)
|
PCIe Gen5x4 — up to 128 Gb/s, type 2280 (CPU) |
|---|---|
|
M.2 Slot 2 (Hyper)
|
PCIe Gen4x4 — up to 64 Gb/s, type 2280 (CPU) |
|
M.2 Slot 3 (Hyper)
|
PCIe Gen4x4 — up to 64 Gb/s, type 2230/2242/2260/2280 (Chipset) |
|
M.2 Slot 4 (Ultra)
|
PCIe Gen3x4 — up to 32 Gb/s, type 2280 (Chipset) |
|
SATA3
|
4 x SATA3 6.0 Gb/s Connectors |
|
RAID
|
RAID 0, RAID 1 (SATA); RAID 0, RAID 1, RAID 10 (NVMe M.2) |
|
Graphics Output
|
Integrated AMD RDNA™ Graphics (CPU dependent) |
|---|---|
|
HDMI
|
1 x HDMI 2.1 — supports HDR, HDCP 2.3, up to 4K 120Hz |
|
USB-C Display
|
1 x USB 3.2 Gen1 Type-C (DP-alt, DP 1.4a) — up to 4K 60Hz |
|
LAN
|
Realtek Dragon RTL8125BG — 2.5 Gigabit (10/100/1000/2500 Mb/s) |
|---|---|
|
Wi-Fi
|
802.11axe Wi-Fi 6E (2.4GHz / 5GHz / 6GHz) — 2×2 MU-MIMO, dual antenna |
|
Bluetooth
|
Bluetooth 5.2 |
|
USB Rear
|
1 x USB 3.2 Gen2 Type-C (10 Gb/s), 1 x USB 3.2 Gen1 Type-C (DP-alt), 4 x USB 3.2 Gen1 Type-A, 6 x USB 2.0 |
|
USB Front Headers
|
1 x USB 3.2 Gen2x2 Type-C (20 Gb/s), 1 x USB 3.2 Gen1 Header (2 ports), 2 x USB 2.0 Headers (3 ports) |
|
Audio
|
Realtek ALC897 — 7.1 CH HD Audio; Line In / Front Speaker / Microphone jacks |
|
Expansion Slots
|
1 x PCIe 5.0 x16 (CPU), 1 x PCIe 4.0 x16 at x4 mode (Chipset), 1 x M.2 Key-E (Wi-Fi module) |
|
Form Factor
|
ATX — 12.0-in x 9.6-in (30.5 cm x 24.4 cm) |
|---|---|
|
PCB Layers
|
8 Layer PCB |
|
RGB
|
1 x RGB LED Header (12V/3A), 3 x Addressable LED Headers (5V/3A) |
|
Fan Headers
|
2 x CPU Fan (4-pin), 4 x Chassis Fan (4-pin), 1 x AIO Pump (4-pin) — all Smart Fan Speed Control |
|
Power Connectors
|
1 x 24-pin ATX, 2 x 8-pin 12V (Hi-Density) |
|
Certifications
|
FCC, CE, ErP/EuP ready |
|
In the Box
|
Motherboard x1, I/O Shield x1, SATA Data Cables x2, Wi-Fi Antennas (2.4/5/6 GHz) x2 |
| Weight | 1.785 kg |
|---|---|
| Dimensions | 34.6 × 28.1 × 7.5 cm |
| Brand |
ASRock |
| Warranty |
36 Months |
