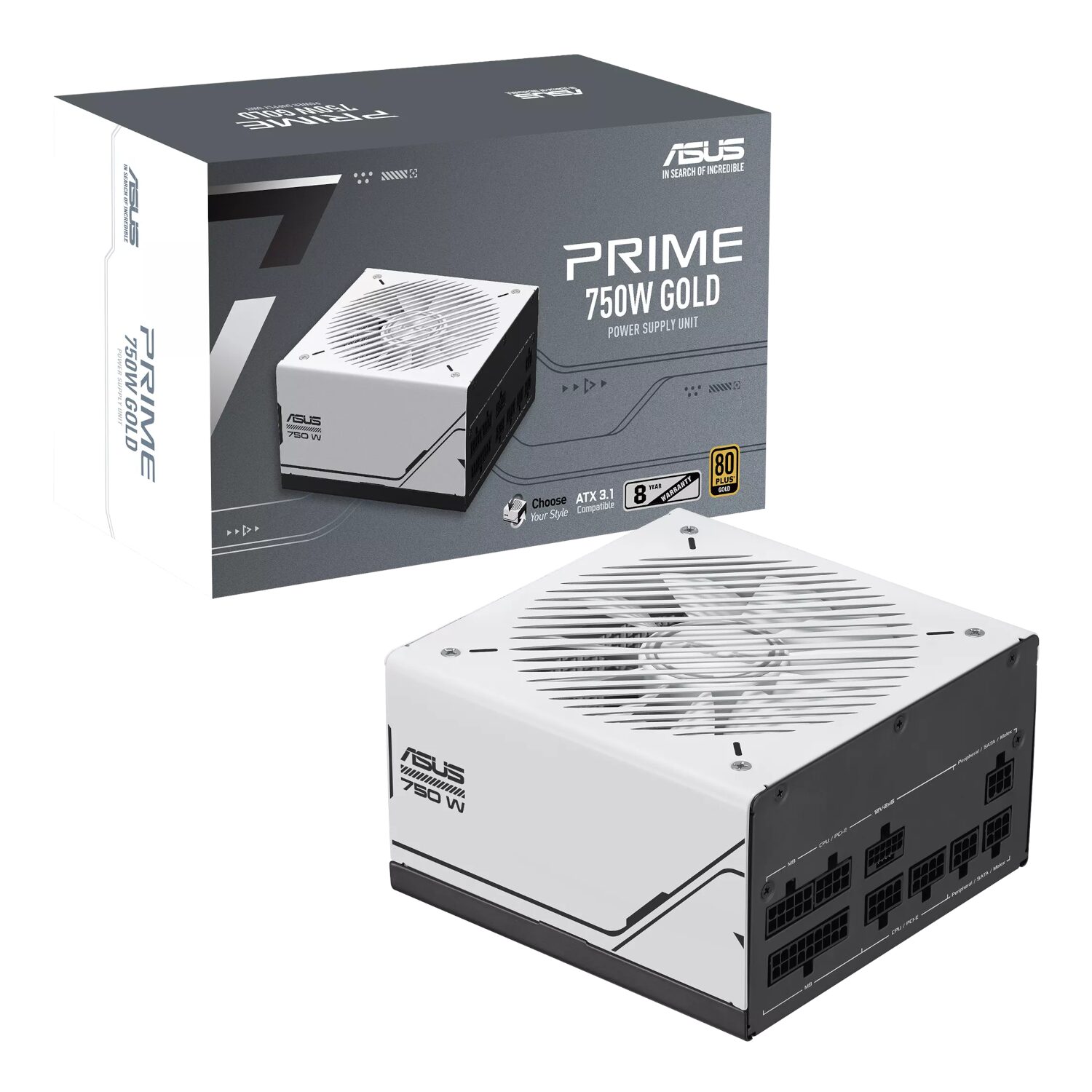

ASUS Prime AP-750G | 750W Continuous Power | 80+ Gold Efficiency | ATX 3.1 | Fully Modular – New

R2,374.84

Built to Power Every Frame, Every Fight

The ASUS Prime AP-750G gives your gaming rig the stable, clean power it needs to perform at its peak. With 750W of continuous output and 80 PLUS Gold efficiency, your system runs cooler, draws less from the wall, and stays rock-solid even during the most punishing gaming sessions — no throttling, no surprises.

Ready for the GPU of Tomorrow

With a native PCIe Gen 5.1 16-pin connector and full ATX 3.1 compliance, the Prime AP-750G is engineered to handle the latest high-performance graphics cards without adapters or compromise — future-proofing your build from the ground up.

Clean Cables, Cleaner Builds

The fully modular cable system means you only plug in what you need, eliminating cable clutter, improving airflow inside your chassis, and giving your build the clean aesthetic it deserves — whether it’s a showcase rig or a workhorse setup.

Out of stock

Compare
SKU: PRIME-AP-750G Categories: , , Tags: , , , ,
Description
Tech Specs
Performance
Total Output
750W Continuous Power
Efficiency Rating
80 PLUS Gold
ATX Standard
ATX 3.1 / ATX12V
PFC Type
Active PFC
AC Input Range
100–240Vac
DC Output Voltages
+3.3V, +5V, +12V, -12V, +5Vsb
Maximum Load
+3.3V: 20A | +5V: 20A | +12V: 62A | -12V: 0.3A | +5Vsb: 2.5A
Combined Load
+3.3V & +5V: 110W | +12V: 744W | -12V: 3.6W | +5Vsb: 12.5W
MTBF
>120,000 hours @ 25°C
Capacitors
Japanese 105°C Rated
Protection Features
OPP, OVP, UVP, SCP, OCP, OTP
Compliance
RoHS
Cooling
Fan Size
135mm Dual Ball Bearing Fan
0dB Technology
Not Available
Connectivity
Motherboard Connector
24/20-pin x 1
CPU Connector
4+4-pin x 2
PCIe 16-pin (Gen 5.1)
x 1 (native, both PSU & connector side)
PCIe 8-pin
x 3
SATA
x 5
Peripheral
x 3
Cable Design
Fully Modular
Design
Form Factor
ATX
Dimensions
150 x 150 x 86 mm
Weight
1466 g
Additional information
Weight 10.601 kg
Dimensions 35 × 32 × 53 cm
Brand

ASUS

Colour

White

Warranty

None
