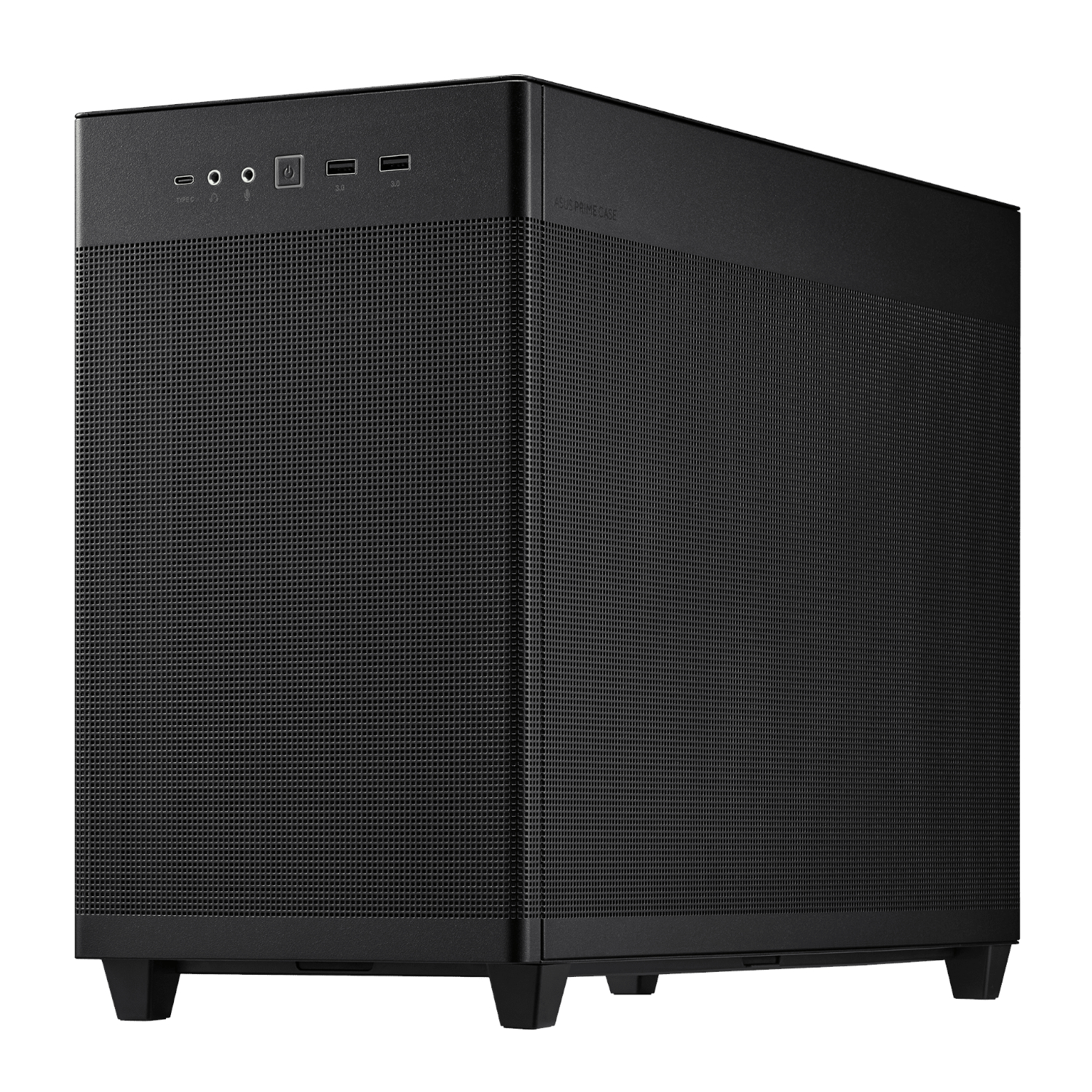

Asus Prime AP201 Mesh MicroATX Chassis | MicroATX & Mini-ITX | 57,000+ Mesh Holes | 338mm GPU Support | 33L Compact – New
R1,789.54
Build Big. Think Small.
The Asus Prime AP201 proves that a compact footprint doesn’t mean compromising on ambition. Whether you’re assembling a powerhouse gaming rig or a sleek productivity machine, this 33L micro tower gives you full-sized component compatibility — long GPUs, ATX PSUs, and custom liquid cooling — all wrapped in a chassis you’ll actually want to show off.
57,000 Reasons Your Build Stays Cool
Thermal performance isn’t an afterthought here — it’s the entire design philosophy. Over 57,000 precision-machined 1.5mm mesh holes work continuously to push hot air out and pull cool air in, while support for up to 360mm radiators and six fans means your components stay at their best even when you’re pushing them hardest.
A Clean Build, Right Out of the Box
Cable chaos is a thing of the past. The AP201 features an extended motherboard tray with smart cable cutouts and a generous 32mm management gap behind the board, so your build looks as good on the inside as it does through those mesh panels. Tool-free side panels mean getting in and out of your case takes seconds, not a screwdriver.
Ready for Whatever You Plug In
The front panel USB 3.2 Gen 2 Type-C port delivers transfer speeds up to 10 Gbps, keeping you connected to the latest high-bandwidth peripherals without slowing you down. A removable bottom dust filter keeps the internals clean, protecting your investment over the long haul.
4 in stock
Compare|
Case Size
|
Small Tower (Micro ATX) |
|---|---|
|
Motherboard Support
|
Micro-ATX, Mini-ITX |
|
Volume
|
33 Litres |
|
Colour
|
Black |
|
Product Dimensions
|
205 x 350 x 460 mm |
|
Product Weight
|
5800g (Mesh Edition) |
|
Radiator Support (Top)
|
120mm, 140mm, 240mm, 280mm, 360mm |
|---|---|
|
Radiator Support (Rear)
|
120mm |
|
Cooling Support (Top)
|
3 x 120mm / 2 x 140mm |
|
Cooling Support (Rear)
|
1 x 120mm |
|
Pre-installed Fans (Front)
|
None |
|
Pre-installed Fans (Rear)
|
1 x 120mm |
|
Maximum CPU Cooler Height
|
170mm |
|
Maximum GPU Length
|
338mm |
|---|---|
|
Maximum PSU Length
|
140–180mm (ATX) |
|
Expansion Slots
|
4 |
|
Drive Bays
|
1 x 2.5″ Bay, 3 x 2.5″/3.5″ Combo Bay |
|
Front I/O Ports
|
1 x Headphone, 1 x Microphone, 2 x USB 3.2 Gen 1, 1 x USB 3.2 Gen 2 Type-C (up to 10 Gbps) |
|---|
|
Panel Design
|
Quasi-filter mesh with 57,000+ precision-machined 1.5mm holes |
|---|---|
|
Side Panel Access
|
Tool-free clip mechanism |
|
Cable Management Space
|
32mm behind motherboard tray |
|
Dust Filters
|
Removable bottom dust filter |
|
Included
|
Asus Prime AP201 Mesh MicroATX Chassis – Black x1 |
|---|
| Weight | 6.5 kg |
|---|---|
| Dimensions | 43 × 27 × 52 cm |
| Brand |
ASUS |
| Warranty |
24 Months |
