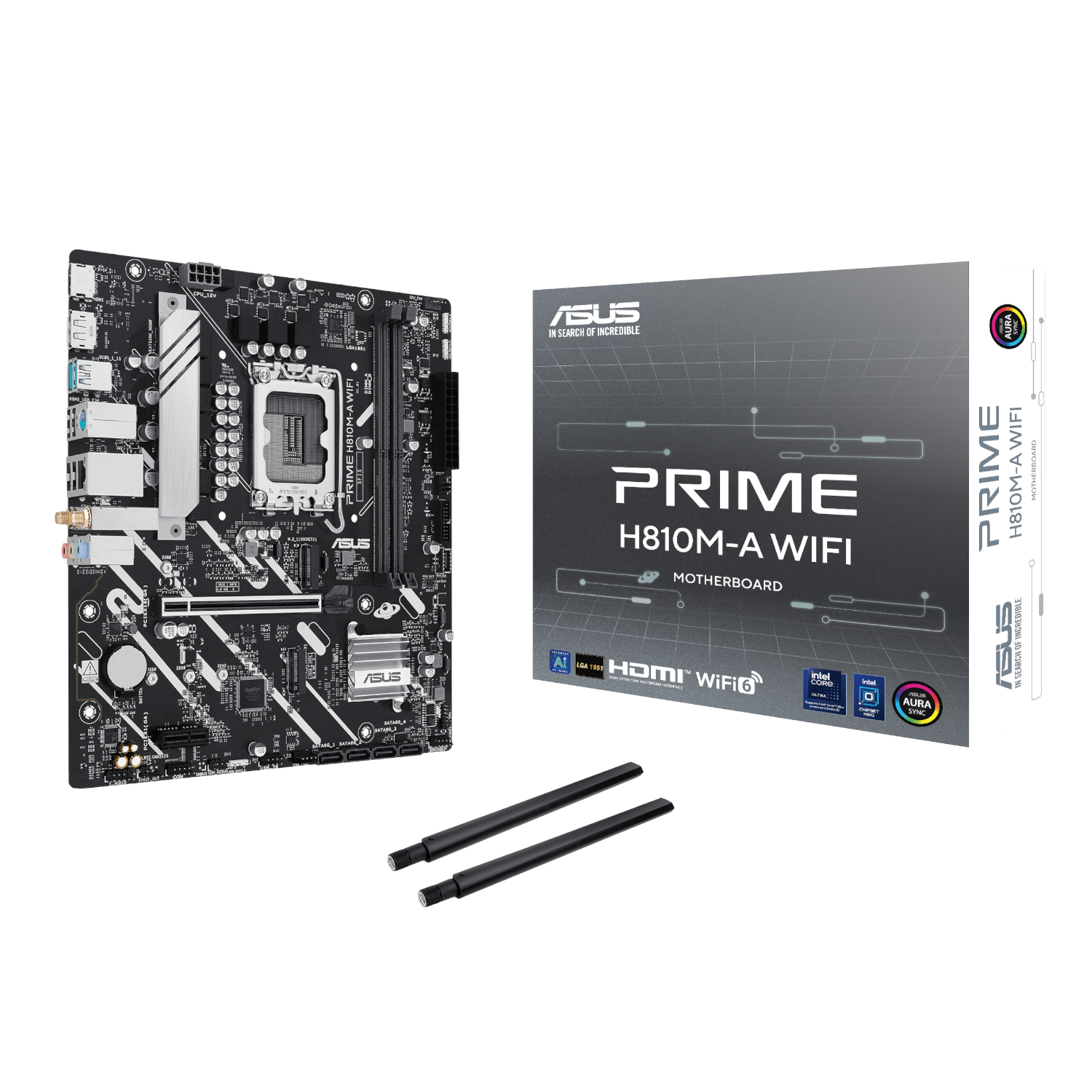

ASUS PRIME H810M-A WIFI | LGA1851 Micro ATX | Intel H810 Chipset | DDR5 128GB | PCIe 4.0 – New
R2,191.87
Next-Gen Intel Power, Right Out of the Box
Built to support Intel Core Ultra Series 2 processors on the LGA1851 socket, the ASUS PRIME H810M-A WIFI gives your next build a rock-solid foundation. Whether you’re assembling a capable workstation or a budget-conscious gaming rig, this micro ATX board slots into any standard mid-tower and punches well above its size.
Wire-Free and Worry-Free Connectivity
With built-in Wi-Fi 6 and Bluetooth 5.3, you’re not hunting for a spare PCIe slot just to get online. Stream, game, and video call without a cable in sight — and when you need wired reliability, Intel’s 1Gb Ethernet has you covered for low-latency, stable connections.
Smarter Building, Fewer Headaches
ASUS SafeSlot Core+ protects your GPU investment by reinforcing the PCIe slot against flex and pull, while Q-LED Core gives you instant visual feedback during POST so you can diagnose issues in seconds rather than minutes. First-time builder or seasoned enthusiast — this board makes the process smoother for everyone.
Audio That Actually Sounds Good
The Realtek 7.1 Surround Sound HD Audio CODEC, combined with dedicated audio PCB layers, premium capacitors, and audio shielding, means your headset or speakers get clean, interference-free sound. Up to 24-bit/192kHz playback ensures nothing is lost between your media and your ears.
Out of stock
Compare|
CPU Socket
|
LGA1851 |
|---|---|
|
Supported Processors
|
Intel® Core™ Ultra Processors (Series 2); supports Intel® Turbo Boost Technology 2.0 and 3.0 |
|
Chipset
|
Intel® H810 Chipset |
|
Memory Slots
|
2 x DIMM slots, max. 128GB, DDR5 |
|
Memory Speed
|
Up to 6400 MT/s (OC), Non-ECC, Unbuffered, CUDIMM; Dual Channel; supports Intel XMP & ASUS AEMP II |
|
Operating System
|
Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later) |
|
Display Outputs
|
1 x DisplayPort 1.4 (max. 4K@60Hz), 1 x HDMI™ 2.1 (max. 4K@60Hz) |
|---|
|
Expansion Slots
|
1 x PCIe 4.0 x16 slot (CPU), 1 x PCIe 4.0 x1 slot (Chipset) |
|---|---|
|
M.2 Slots
|
M.2_1 (Key M, type 2280, PCIe 4.0 x4); M.2_2 (Key M, type 2242/2260/2280, PCIe 4.0 x2) |
|
SATA Ports
|
4 x SATA 6Gb/s ports |
|
Ethernet
|
1 x Intel® I219V 1Gb Ethernet (ASUS LANGuard) |
|---|---|
|
Wi-Fi
|
Wi-Fi 6 (802.11ax), 1×1, 2.4GHz & 5GHz |
|
Bluetooth
|
Bluetooth® 5.3 |
|
Rear USB
|
2 x USB 10Gbps (Type-A), 4 x USB 2.0 (Type-A) |
|
Front USB Headers
|
1 x USB 5Gbps Type-C® connector (5V/3A), 1 x USB 5Gbps header (2 ports), 1 x USB 2.0 header (2 ports) |
|
Back Panel I/O
|
2 x USB 10Gbps (Type-A), 4 x USB 2.0 (Type-A), 1 x DisplayPort, 1 x HDMI™, 1 x Wi-Fi antenna port, 1 x Intel® 1Gb Ethernet, 3 x Audio jacks, 1 x PS/2 keyboard/mouse combo port |
|
Audio Codec
|
Realtek 7.1 Surround Sound High Definition Audio CODEC |
|---|---|
|
Playback
|
Up to 24-bit/192kHz |
|
Audio Features
|
Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers, Jack-detection, Multi-streaming, Front Panel Jack-retasking |
|
Form Factor
|
Micro ATX |
|---|---|
|
RGB Lighting
|
Aura Sync support for full RGB lighting control |
|
Build Features
|
SafeSlot Core+ (reinforced PCIe slot), Q-LED Core (diagnostic LEDs), DIMM Fit |
|
Colour
|
Black |
|
Contents
|
ASUS PRIME H810M-A WIFI Motherboard x1, Wi-Fi Moving Antenna x1, SATA Cables x2, I/O Shield x1, Screw Package for M.2 SSD x1, Quick Start Guide x1 |
|---|
| Weight | 1.55 kg |
|---|---|
| Dimensions | 27 × 6 × 27 cm |
| Brand |
ASUS |
| Colour |
Black |
| Warranty |
36 Months |
