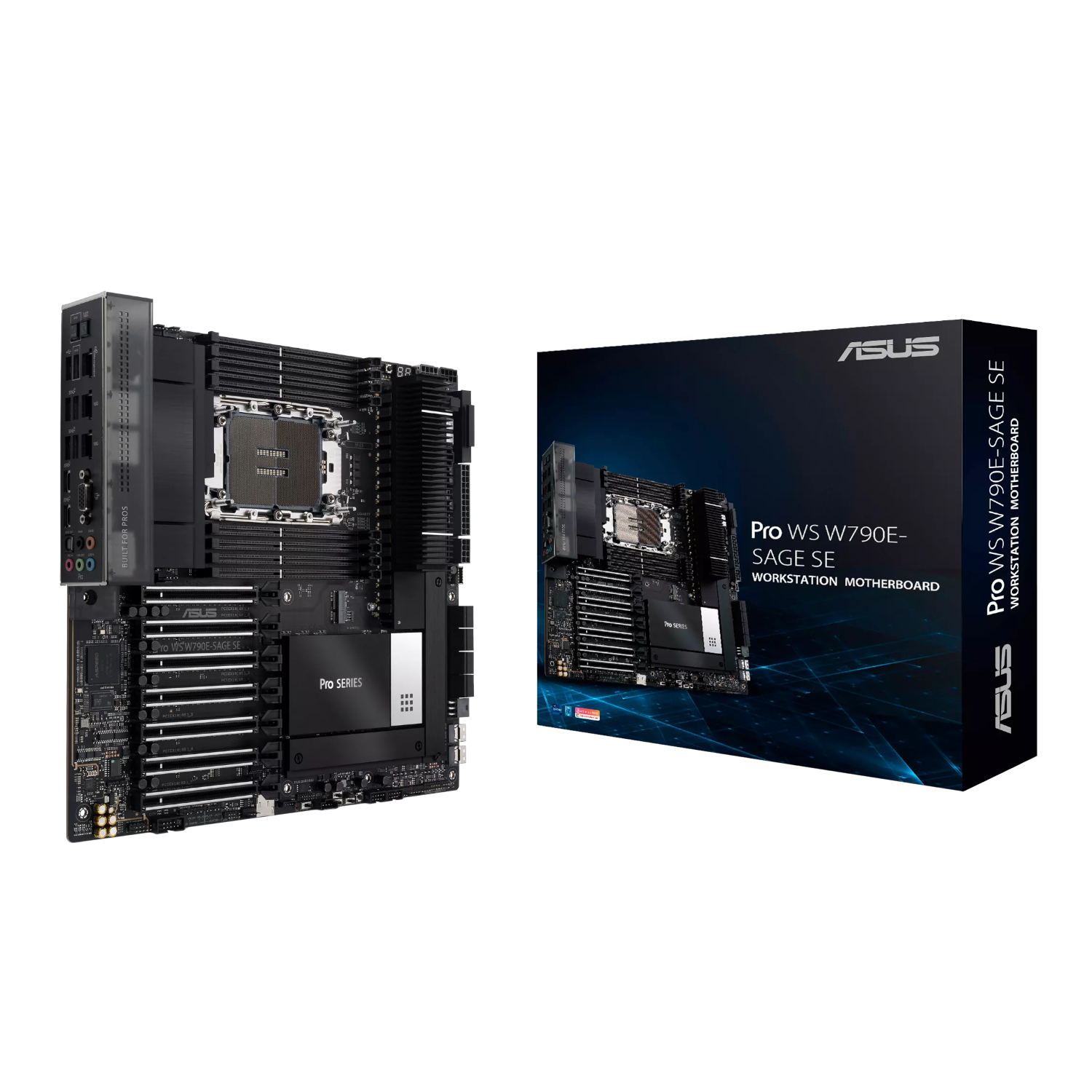

ASUS Pro WS W790E-SAGE SE | LGA4677 EEB | Intel Xeon W-3400/W-2400 | 2TB DDR5 ECC | 7x PCIe 5.0 – New

R27,449.24

The Bedrock of Your AI Workstation

When your work demands more than a standard platform can offer — when AI training, scientific simulation, or complex data analysis pushes everything to its limits — the ASUS Pro WS W790E-SAGE SE is the foundation that holds it all together. Built for Intel Xeon W-3400 and W-2400 processors, it supports up to 2TB of ECC DDR5 memory so your most ambitious datasets never hit a wall.

Seven Lanes of Pure Bandwidth

With seven PCIe 5.0 x16 slots and dual Intel 10GbE LAN ports, this motherboard gives your accelerators, GPUs, and high-speed storage the headroom they need to perform at full throttle — simultaneously, without compromise.

Stay in Control, Even When You’re Not in the Room

Server-grade IPMI remote management via a dedicated AST2600 BMC controller means you can monitor, diagnose, and control your workstation from anywhere — even when the system is powered off. For IT professionals and power users who can’t afford downtime, this is the feature that changes everything.

Built to Run Hard, Every Hour of Every Day

With 14+1+1 power stages, massive VRM and M.2 heatsinks, and tested 24/7 operation stability, this board is engineered for the long haul. It doesn’t just handle sustained heavy loads — it was designed for them.

Out of stock

Compare
SKU: PRO WS W790E-SAGE SE Categories: , , , , Tags: , , , ,
Description
Tech Specs
Performance
CPU Socket
Intel® LGA4677 for Xeon® W-3400 and W-2400 Series Processors
Chipset
Intel® W790 Chipset
CPU Support
Intel® Xeon® W-3400 and W-2400 Series; Supports Intel® Turbo Boost Max Technology 3.0
Memory Slots
8 x DIMM slots, Max. 2048GB (2TB), DDR5 up to 6800(OC) / 4800 ECC Registered, 8-Channel Architecture
Memory Support
ECC R-DIMM DDR5; Supports Intel® XMP (Extreme Memory Profile)
Operating System
Windows® 11, Windows® 10 64-bit
Expansion & Storage
PCIe Slots (W-3400)
7 x PCIe 5.0 x16 slots (x16/x16/x16/x16/x16/x8/x16)
PCIe Slots (W-2400)
4 x PCIe 5.0 x16 slots (x16/x16/x16/x16)
M.2 Slots
3 x M.2 slots (Key M), type 2242/2260/2280/22110; M.2_1 & M.2_2: PCIe 5.0 x4 (W-3400); M.2_3: PCIe 4.0 x4
SlimSAS
2 x SlimSAS ports (PCIe 4.0 x4 NVMe)
SATA
8 x SATA 6Gb/s ports
RAID Support
Intel® VROC: PCIe RAID 0/1/5/10; SATA RAID 0/1/5/10 (VROC_HW_Key sold separately)
Connectivity
LAN
1 x Intel® Dual 10Gb Ethernet (Intel X710-AT2); 1 x Realtek 1Gb Ethernet; ASUS LANGuard
Rear USB
1 x USB 3.2 Gen 2×2 Type-C®; 5 x USB 3.2 Gen 2 (4x Type-A + 1x Type-C®); 2 x USB 2.0 Type-A
Front USB Headers
1 x USB 3.2 Gen 2 Type-C® connector; 1 x USB 3.2 Gen 1 header (2 ports); 2 x USB 2.0 headers (4 ports)
Video Output
1 x VGA port (from AST2600 BMC)
Audio
Realtek S1220A 7.1 Surround Sound HD Audio; 5 x Audio jacks; 1 x Optical S/PDIF out; 120dB SNR stereo playback; up to 32-bit/192kHz
Management & BMC
IPMI
Server-grade IPMI remote management; Dedicated LAN port linked to AST2600 BMC controller
Manageability
WOL by PME, PXE (UEFI mode)
BIOS
512Mb Flash ROM, UEFI AMI BIOS; BIOS FlashBack™ button; Clear CMOS button
Power & Thermal
Power Stages
14+1+1 power stages
Power Connectors
2 x 24-pin Main Power; 4 x 8-pin +12V; 1 x 8-pin PCIe Power; 1 x 6-pin PCIe Power
Cooling
Massive VRM, chipset, and M.2 heatsinks with M.2 backplates; 1 x 4-pin CPU Fan; 1 x 4-pin CPU OPT Fan; 5 x 4-pin Chassis Fan headers; 1 x W_PUMP+ header
Design
Form Factor
EEB (Extended ATX); 12 inch x 13 inch (30.5 cm x 33 cm)
Colour
Black
Operation
Tested for 24/7 continuous operation
In the Box
Included
Motherboard x1, SATA 6Gb/s cables x4, Thermistor cable pack x1, VRM Fan holder x1, Q-connector x1, M.2 Rubber Package x1, M.2 backplate Rubber Package x1, Screw package for M.2 Key E x1, CPU guard for LGA4677 E1A x1, CPU guard for LGA4677 E1B x1, User guide x1
Additional information
Brand

ASUS

Colour

Black

Warranty

None
