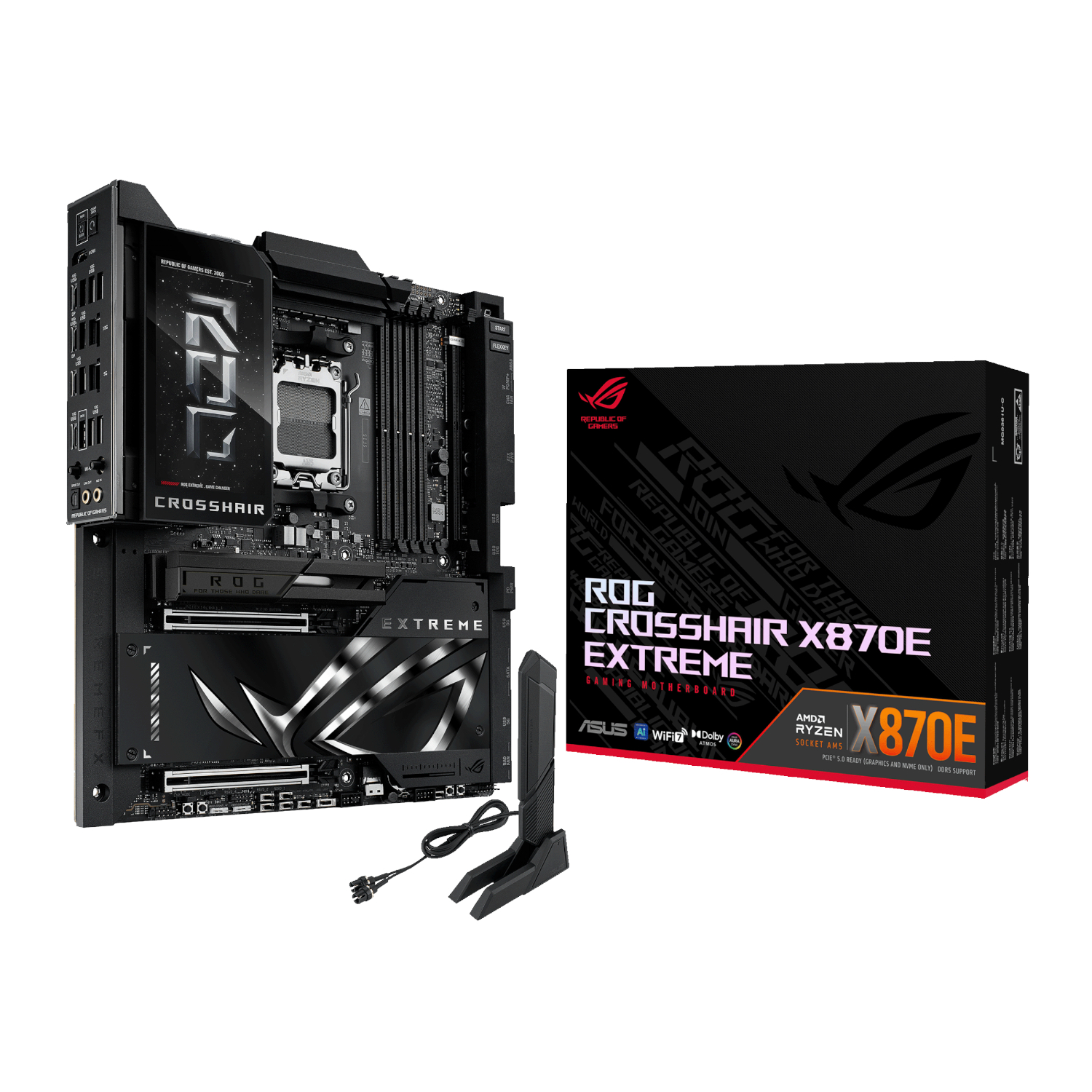

ASUS ROG Crosshair X870E EXTREME | AM5 Socket | AMD X870E Chipset | DDR5 9000+ MT/s | PCIe 5.0 – New
R22,863.70
The Throne Room for Your AMD Ryzen Build
The ROG Crosshair X870E EXTREME isn’t just a motherboard — it’s the command centre your Ryzen 9000 Series processor deserves. With AMD X870E chipset, PCIe 5.0 support, and DDR5 memory running at speeds beyond 9000 MT/s, your system is architected for the absolute bleeding edge of PC performance.
Connectivity That Leaves Nothing Behind
With 12 rear USB ports including dual USB4 40Gbps Type-C, Wi-Fi 7 capable of 6.5Gbps, and both Marvell 10G and Realtek 5G Ethernet, the Crosshair X870E EXTREME ensures every peripheral, every network, and every device connects at full speed — no bottlenecks, no compromises.
Building Made Brilliantly Simple
ASUS engineered this board with the builder in mind. PCIe Q-Release Slim, M.2 Q-Latch, Q-LED diagnostics, BIOS Flashback, and a full-colour 5-inch LCD display mean you spend less time troubleshooting and more time gaming. Even first-time builders will feel like pros.
Your Rig, Your Aesthetic
From LED-illuminated audio jacks to customisable RGB lighting and the iconic ROG design language, the Crosshair X870E EXTREME lets your build reflect your personality. Pair it with Aura Sync-compatible components for a cohesive, head-turning setup that’s as beautiful as it is powerful.
3 in stock
Compare|
CPU Socket
|
AMD Socket AM5 |
|---|---|
|
Supported Processors
|
AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors |
|
Chipset
|
AMD X870E |
|
Memory Slots
|
4 x DIMM, max. 256GB DDR5 |
|
Memory Speed
|
Up to 8200+ MT/s (OC) with Ryzen 9000 Series; up to 9000+ MT/s (OC) with Ryzen 8000 Series; up to 8000+ MT/s (OC) with Ryzen 7000 Series |
|
Memory Type
|
DDR5, Dual Channel, ECC & Non-ECC Un-buffered DIMM; supports AMD EXPO™ and ASUS AEMP |
|
Operating System
|
Windows 11 |
|
M.2 Slots
|
5 x M.2 slots (Key M): M.2_1 & M.2_2 & M.2_3 via CPU (PCIe 5.0 x4, Ryzen 9000/7000); DIMM.2_1 & DIMM.2_2 via ROG Q-DIMM.2 (PCIe 4.0 x4, chipset) |
|---|---|
|
SATA Ports
|
4 x SATA 6Gb/s ports |
|
SlimSAS
|
1 x SlimSAS connector (PCIe 4.0 x4 via SFF-8654 adapter, sold separately) |
|
PCIe Slots
|
2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8 or x8/x4/x4 modes; Ryzen 9000 & 7000 Series) |
|
RAID Support
|
AMD RAIDXpert2: RAID 0/1/5/10 (Ryzen 9000); RAID 0/1 (Ryzen 8000); RAID 0/1/10 (Ryzen 7000) |
|
Ethernet
|
1 x Marvell® AQtion 10Gb Ethernet + 1 x Realtek 5Gb Ethernet; ASUS LANGuard |
|---|---|
|
Wi-Fi
|
Wi-Fi 7 (802.11be), 2×2, 2.4/5/6GHz, up to 6.5Gbps; 320MHz bandwidth support |
|
Bluetooth
|
Bluetooth® 5.4 |
|
Rear USB Ports
|
2 x USB4® 40Gbps (Type-C®) + 8 x USB 10Gbps (Type-A) + 2 x USB 10Gbps (Type-C®) — 12 ports total |
|
Front USB Headers
|
1 x USB 20Gbps (Type-C®, up to 60W PD/QC4+); 1 x USB 10Gbps (Type-C®); 2 x USB 5Gbps headers (4 ports); 2 x USB 2.0 headers (4 ports) |
|
Video Output
|
1 x HDMI 2.1 (4K@60Hz); 2 x USB4® Type-C® (DisplayPort 1.4a, max. 4K@60Hz) |
|
Audio
|
ROG SupremeFX 7.1 Surround Sound, ALC4082 CODEC, 120dB SNR stereo output, 110dB SNR recording, ESS® ES9219 QUAD DAC, LED-illuminated audio jacks, rear optical S/PDIF out, up to 32-Bit/384kHz playback |
|
Form Factor
|
E-ATX |
|---|---|
|
Display
|
Full colour 5-inch LCD display (system info or custom images) |
|
RGB Lighting
|
Customisable RGB/ARGB lighting with Aura Sync support |
|
DIY Features
|
PCIe Q-Release Slim, M.2 Q-Latch, M.2 Q-Slide, Q-Antenna, Q-LED, BIOS Flashback™ button, Clear CMOS button |
|
Colour
|
Black |
|
Included Accessories
|
1-to-3 ARGB splitter cable, 1-to-2 ARGB splitter cable, 2 x 1-to-4 fan splitter cables, 2 x ROG weave SATA 6G cable packages, 3-in-1 Thermistor cables pack, ROG DIMM.2 with heatsink, M.2 pad package for ROG Q-DIMM.2, 2 x Thermal pad for ROG Q-DIMM.2, 2 x Thermal pad for M.2 22110, DDR5 Fan holder, ROG Fan Kit, ASUS Wi-Fi Q-Antenna, Q-connector, ROG logo plate sticker, ROG screwdriver, ROG stickers, ROG VIP card, M.2 Q-Slide package, 5 x M.2 backplate rubber packages, ROG Bottle Opener, USB drive with utilities and drivers, Quick Start Guide |
|---|
| Weight | 5.5 kg |
|---|---|
| Dimensions | 37 × 32 × 12 cm |
| Brand |
ASUS |
| Colour |
Black |
| Warranty |
36 Months |
