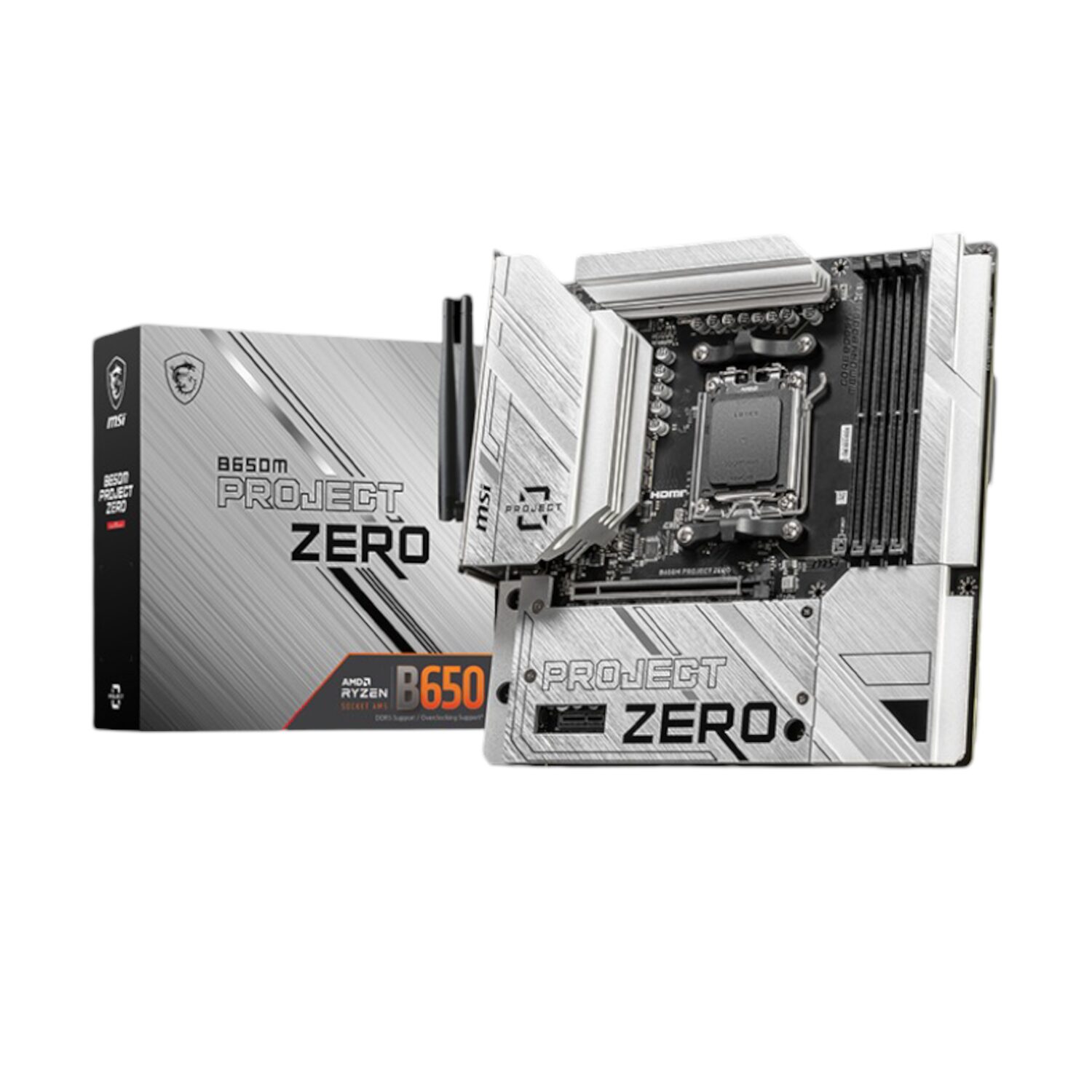

MSI B650M PROJECT ZERO | AMD B650 Chipset | Socket AM5 | DDR5 7600+(OC) | Micro-ATX – New

R4,239.82

Building Without Boundaries

The MSI B650M PROJECT ZERO flips the script on traditional PC building with its revolutionary Back Connect Design — moving all cables and headers to the rear of the board, so your build looks as stunning as it performs. Say goodbye to cable clutter and hello to a clean, gallery-worthy front-facing setup.

Next-Gen Power, Zero Compromise

Engineered to unleash AMD Ryzen™ 9000, 8000, and 7000 series processors, this board pairs raw computing muscle with DDR5 memory support up to 7600+(OC) MHz — giving gamers, creators, and power users the headroom they need to push every workload to its limit.

Stay Connected at Every Speed

Whether you’re streaming, gaming online, or transferring massive project files, Wi-Fi 6E, 2.5Gbps LAN, and USB 20Gbps Type-C ensure you’re never the bottleneck. Every port, every connection, every moment — built for speed.

1 in stock

SKU: B650MPROJECTZERO Categories: , , Tags: , , , , ,
Description
Tech Specs
Performance
Chipset
AMD B650
CPU Support
AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors (Socket AM5)
Memory Slots
4x DDR5, Maximum 256GB
Memory Speed
DDR5 7600+(OC) / 7400(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 5000(OC) / 4800(JEDEC) MHz
Audio
Realtek® ALC897 Codec — 7.1-Channel High Definition Audio, up to 32-Bit/384 kHz playback
RAID
RAID 0, RAID 1, RAID 10 for SATA; RAID 0, RAID 1 for M.2 NVMe
Operating System
Windows® 11 64-bit, Windows® 10 64-bit
Storage
M.2 Slots
2x M.2 — M.2_1 & M.2_2 (From CPU), up to PCIe 4.0 x4, supports 2280/2260 devices
SATA
4x SATA 6G
Display
HDMI
1x HDMI™ 2.1 with HDR, maximum resolution 4K 60Hz (requires CPU with integrated graphics)
DisplayPort
1x DisplayPort 1.4, maximum resolution 4K 60Hz (requires CPU with integrated graphics)
Connectivity
LAN
Realtek® RTL8125BG 2.5Gbps LAN
Wireless LAN
AMD Wi-Fi 6E — Supports 802.11 a/b/g/n/ac/ax, MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz bands
Bluetooth
Bluetooth® 5.3
USB (Rear)
2x USB 2.0 Type-A, 2x USB 5Gbps Type-A, 3x USB 10Gbps Type-A, 1x USB 10Gbps Type-C, 1x USB 20Gbps Type-C
USB (Front Headers)
4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-C
Expansion Slots
1x PCIe x16 (Gen 4.0 from CPU), 1x PCIe x1 (Gen 3.0 from Chipset)
Design
Form Factor
Micro-ATX (mATX) — 243.84 mm x 243.84 mm
Back Connect Design
Connectors and headers relocated to rear of motherboard for cleaner cable management
Thermal Solution
Extended Heatsink Design and M.2 Shield Frozr
RGB
3x Addressable V2 RGB LED connectors (JARGB_V2), 4x EZ Debug LED
Internal Connectors
1x ATX Power, 2x CPU Power, 1x CPU Fan, 1x Pump Fan, 3x System Fan, 2x Front Panel, 1x Chassis Intrusion, 1x Front Audio, 1x TPM Header (TPM 2.0)
Back Panel Features
Flash BIOS Button, Clear CMOS Button, DisplayPort, HDMI™, 2.5G LAN, USB 2.0, USB 5Gbps, USB 10Gbps (Type-A & Type-C), USB 20Gbps (Type-C), Wi-Fi/Bluetooth, Audio Connectors
In the Box
Included
MSI B650M PROJECT ZERO Motherboard x1, Quick Installation Guide x1, EU Regulatory Notice x1, SATA Cables x2, Wi-Fi Antenna x1, Cable Stickers
Additional information
Weight 1.92 kg
Dimensions 28.5 × 8 × 27 cm
Brand

MSI

Warranty

36 Months
