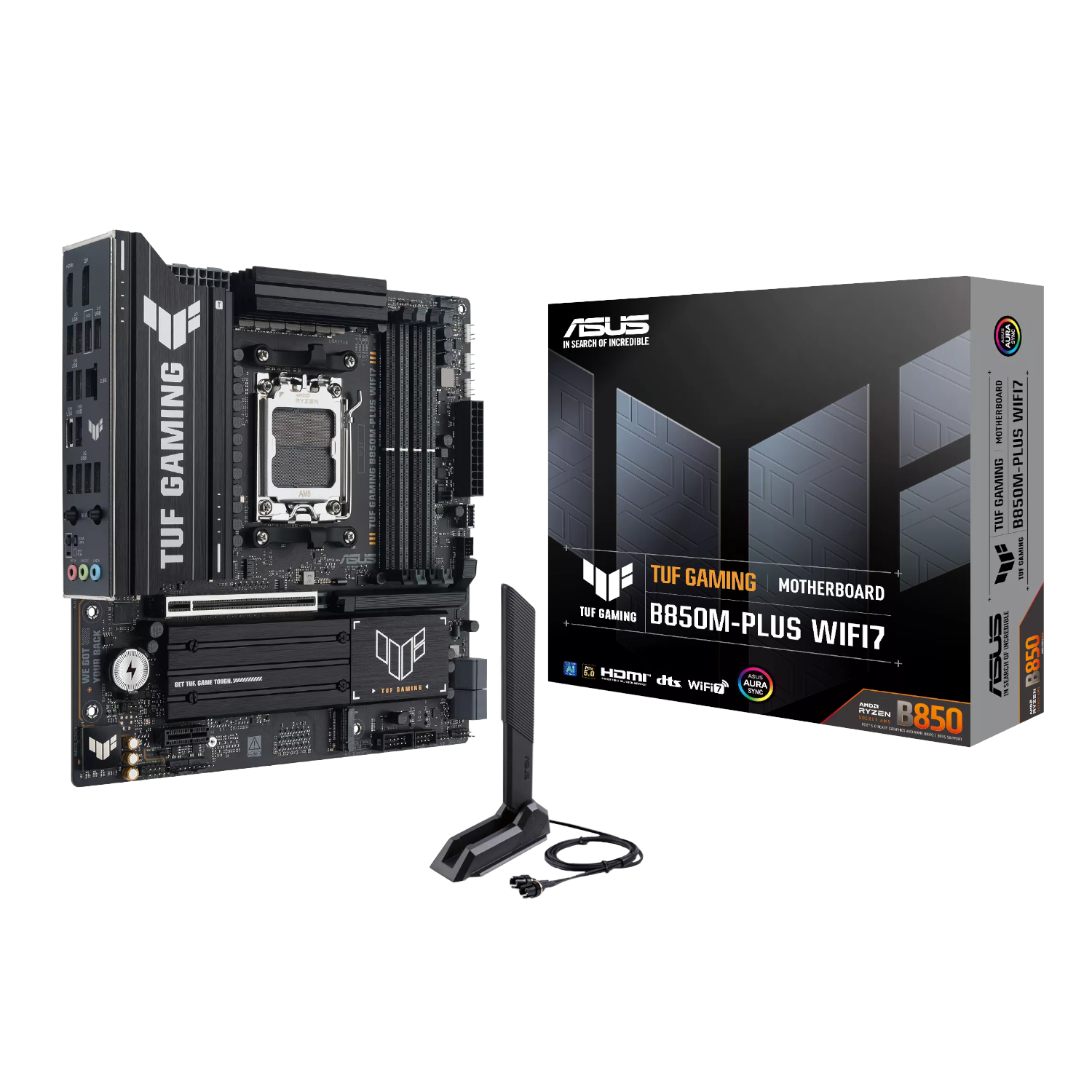

ASUS TUF Gaming B850M-Plus WIFI | AMD AM5 M-ATX | Wi-Fi 7 | DDR5 | PCIe 5.0 – New
R4,572.74
The Unyielding Foundation Your Battle Station Deserves
The ASUS TUF Gaming B850M-Plus WIFI is engineered for gamers who refuse to compromise. With a robust 12+2 DrMOS power solution and military-grade components, your AMD Ryzen AM5 processor gets the clean, stable power it needs to dominate — whether you’re deep in a raid, streaming, or pushing overclocks to the limit.
Cut the Cable, Keep the Speed
Wi-Fi 7 with MediaTek MT7925 and 2.5 Gb Ethernet mean you’re never held back by your connection. Whether you’re running wired for tournament-level stability or wireless across your setup, you get the low latency and high throughput that competitive gaming demands — no excuses, no lag spikes.
Storage, Expansion & Audio Built for the Long Game
Three M.2 slots — including a blazing PCIe 5.0 x4 slot — four SATA ports, and a full suite of USB connectivity give you room to grow without limits. Pair that with the Realtek ALC1220P 7.1 surround audio and AI noise-cancelling mic technology, and you’re immersed in crystal-clear sound while your teammates hear every word perfectly.
Built Tough Enough to Outlast the Competition
TUF LANGuard, ESD Guards, enhanced VRM heatsinks, and military-grade certified components aren’t just marketing — they’re the reason TUF Gaming boards keep running when others give out. This motherboard is designed not just to perform on day one, but to deliver unwavering reliability for years of gaming, building, and upgrading.
9 in stock
Compare|
CPU Socket
|
AMD Socket AM5 — Supports AMD Ryzen™ 9000, 8000 & 7000 Series Desktop Processors |
|---|---|
|
Chipset
|
AMD B850 |
|
Memory Slots
|
4 x DIMM, DDR5, Max. 256GB — Dual Channel — Supports up to 8000+ MT/s (OC) — ECC & Non-ECC Unbuffered — EXPO™ & AEMP Support |
|
Power Stages
|
12+2 DrMOS with Premium Alloy Chokes and Durable Capacitors |
|
Operating System
|
Windows® 11 |
|
PCIe Slots
|
1 x PCIe 5.0 x16 (Ryzen 9000/7000) or PCIe 4.0 x16 x8/x4 (Ryzen 8000) | 1 x PCIe 4.0 x1 (B850 Chipset) |
|---|---|
|
M.2 Slots
|
3 x M.2 (Key M) — M.2_1: PCIe 5.0 x4 (Ryzen 9000/7000) or PCIe 4.0 x4 (Ryzen 8000), type 2280 | M.2_2: PCIe 4.0 x4, type 2242/2260/2280 | M.2_3: PCIe 4.0 x4 (B850 Chipset), type 2280 |
|
SATA Ports
|
4 x SATA 6Gb/s |
|
RAID Support
|
AMD RAIDXpert2 — RAID 0/1/5/10 (Ryzen 9000) | RAID 0/1 (Ryzen 8000) | RAID 0/1/10 (Ryzen 7000) |
|
Display Outputs
|
1 x DisplayPort 1.4 (supports max. 8K@30Hz) | 1 x HDMI™ 2.1 (supports 4K@60Hz) |
|---|
|
Ethernet
|
1 x Realtek 2.5 Gb Ethernet with TUF LANGuard |
|---|---|
|
Wi-Fi
|
Wi-Fi 7 (MediaTek MT7925) — 802.11be — 2×2 — 2.4/5/6GHz — 160MHz Bandwidth |
|
Bluetooth
|
Bluetooth® 5.4 |
|
Rear USB Ports
|
1 x USB 20Gbps Type-C® | 3 x USB 10Gbps Type-A | 4 x USB 5Gbps Type-A | 4 x USB 2.0 Type-A (12 Total) |
|
Front USB Headers
|
1 x USB 10Gbps (Type-C®) | 1 x USB 5Gbps header (2 ports) | 2 x USB 2.0 headers (3 ports) (6 Total) |
|
Audio
|
Realtek ALC1220P — 7.1 Surround Sound HD Audio — 120dB SNR Playback — 113dB SNR Recording — Up to 32-Bit/192kHz — AI Noise-Cancelling Mic — Audio Shielding — Premium Capacitors |
|
Back Panel I/O
|
1 x USB 20Gbps Type-C® | 3 x USB 10Gbps Type-A | 4 x USB 5Gbps Type-A | 4 x USB 2.0 Type-A | 1 x DisplayPort | 1 x HDMI™ | 1 x Wi-Fi Module | 1 x 2.5Gb Ethernet | 3 x Audio Jacks | 1 x BIOS FlashBack™ Button | 1 x Clear CMOS Button |
|
Form Factor
|
Micro-ATX (M-ATX) — 30.5 cm x 24.4 cm |
|---|---|
|
Fan Headers
|
1 x 4-pin CPU Fan | 1 x 4-pin CPU OPT Fan | 1 x 4-pin AIO Pump | 3 x 4-pin Chassis Fan |
|
RGB Headers
|
3 x Addressable RGB Gen 2 Headers |
|
Power Connectors
|
1 x 24-pin Main Power | 2 x 8-pin +12V CPU Power |
|
Miscellaneous Headers
|
1 x Chassis Intrusion | 1 x COM Port | 1 x Front Panel Audio (F_AUDIO) | 1 x 10-1 pin Front Panel System Header |
|
Manageability
|
WOL by PME, PXE |
|
In the Box
|
Motherboard x1 | 2 x SATA 6Gb/s Cables | 1 x ASUS Wi-Fi Q-Antenna | 1 x TUF Gaming Sticker | 1 x M.2 Rubber Package | 1 x M.2 Screw Package | 1 x Quick Start Guide |
| Brand |
ASUS |
|---|---|
| Warranty |
36 Months |
